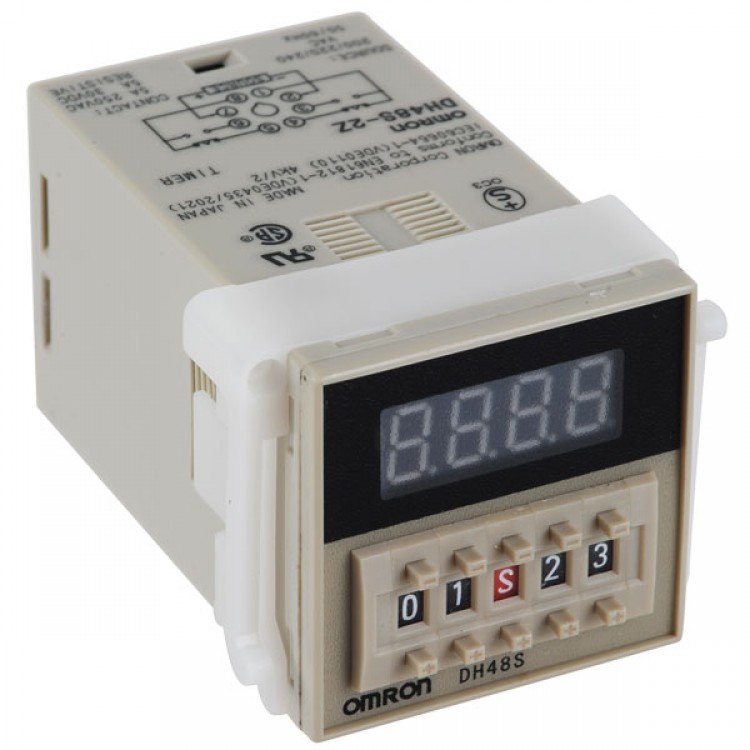

0.01s-99h99min DH48S-2Z AC 220V 4 Digits Preset Time Relay With Socket
Description:
- Time range: 0.01-99.99 second, 0.01-99.99 minute, 0.01-99.99 hour.
- LED 4 digits display, built in socket, plastic dust cover included.
- Preset the counting digits with the press button switch before is powered on.
- The Time Relay is used widely in industrial automatic control system and mechanical equipments
Specification:
Product Name | Time Relay |
Model | DH48S-2Z |
Working Voltage | AC 220V, 50/60Hz |
Contact Capacity | AC 250V 5A Resistive Load |
Time Range | 0.01 Second - 99 Hour 99 Minute |
Total Size (Approx.) | 5.8 x 5 x 11cm/2.3'' x 2'' x 4.3'' (L*W*H) |
Color | As Picture Shown |
Weight | 213g |
Package Content | 1 x Time Relay w Socket |
