10.7M Field Meter Power Signal Strength Detector +10dBm- -90dBm 100DB

Availability: Out Of Stock

  • Price:$38.71
  • Price in reward points: 387 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $37.94 $37.16 $36.00 $34.45 Contact US
Quantity:

10.7M Field Meter Power Signal Strength Detector +10dBm- -90dBm 100DB

Product Description:Input 10.7M,detect signal intensity,output the corresponding voltage value,only detect 10.7M,detecting range:10dBm~-90dBm

Parameter:
- Name:10.7M field meter

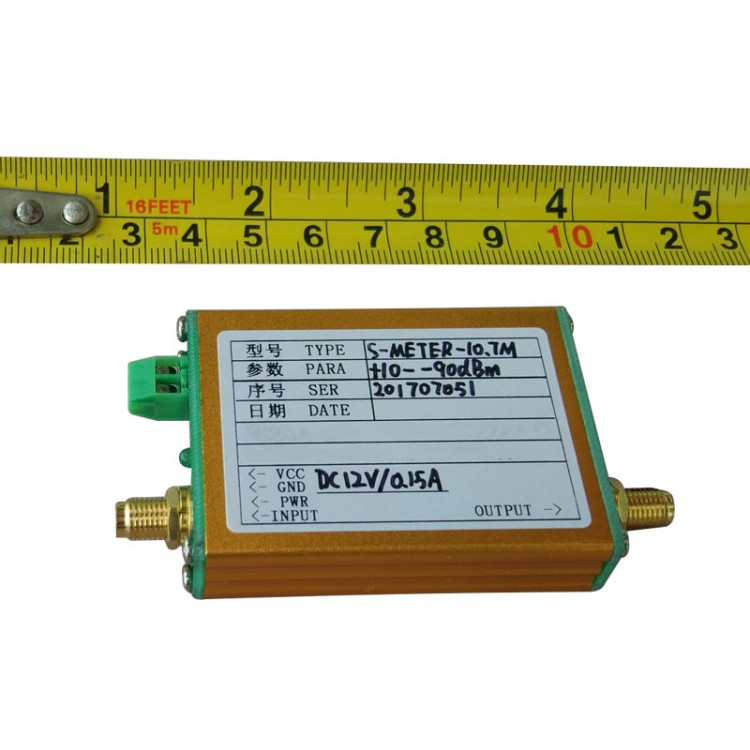

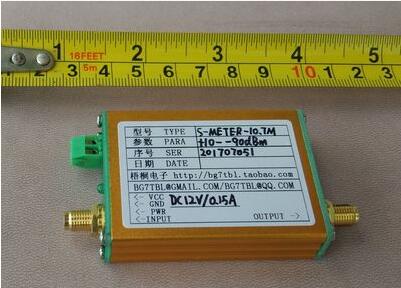

- TYPE:S-METER-10.7M
- Application:input 10.7M, detector signal strength,output voltage,only detector 10.7MHz
- Center frequency:10.7MHz
- Bandwidth:+-50k
- Input Impedance:50 OHM
- Max input power: +13dBm
- Detector power range:+10dBm- -90dBm
- Power VS voltage:10dB VS 0.2V
- DC output resister:200OHM
- Output voltage range:0-2.8V
- Interface: SMA female
- Power:DC 12V 0.15A

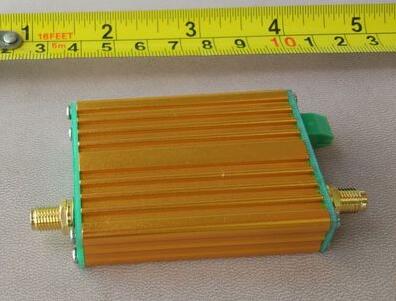

- Size:L*W*H=82*43*14.1mm
- Weight:60g

Power vs Voltage Table:
Power (dBm) Voltage (V)
-110 0.3167
-100 0.4756
-90 0.6739
-80 0.8609
-70 1.0601
-60 1.2469
-50 1.4436
-40 1.631
-30 1.8312
-20 2.0237
-10 2.2239
0 2.4262
10 2.6227

Package List:
- 1 x 10.7M Field Meter
