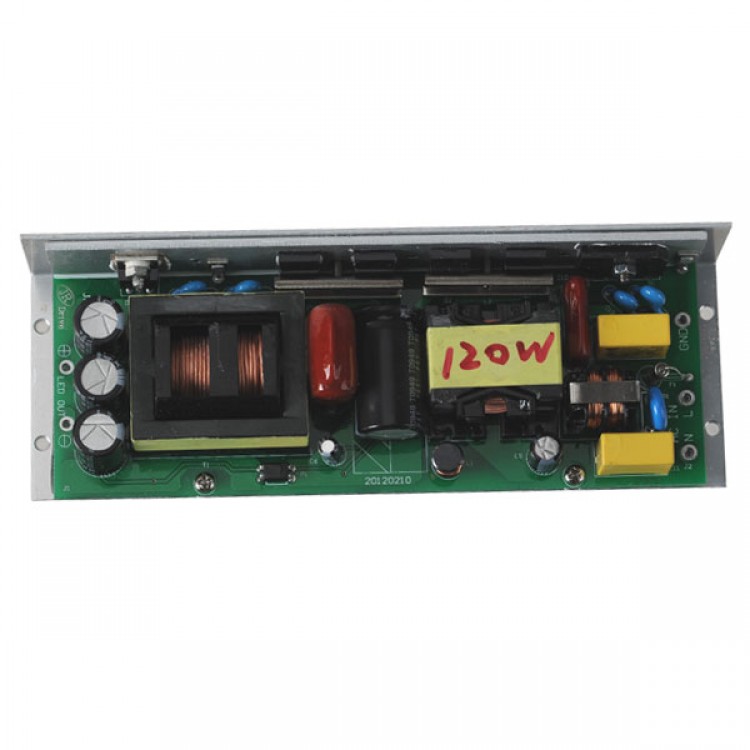

10 Serial 12 Parallel 120W LED Power Supply Driver Module

Availability: Out Of Stock

  • Price:$48.40
  • Price in reward points: 484 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.43 $46.46 $45.01 $43.08 Contact US
Quantity:

10 Serial 12 Parallel 120W LED Power Supply Driver Module
Specfications:
Out put
- DC Voltage:26-36V
- Rated Current:3.6A
- Rated Power:120W
- Ripple wave and noise:2V(p-p)
- Voltage acuuracy:5%
Working Enviroment:
- Full load:-40~ +60℃ (full load) +70℃(60% load)
- Himidity:20-95%RH
- Storgae:temperature:-40 ~ +80℃, 10~95%RH
Specfications:
- Voltage:I/P - O/P: 3.75KVAC;   I/P - FG: 1.88KVAC; O/P - FG: 0.5KVAC
-insulation impedance:I/P - O/P; I/P - FG; O/P - FG: 100M Ohms/ 500VDC/ 25℃/ 70%RH
- Comform with EN55015, EN55022 (CISPR22) CLASS B
