100kHz-50MHz 5W Long-wave AM High-frequency RF Radio Power Amplifier

Availability: In stock, usually dispatched in 1 business day

  • Price:$91.90
  • Price in reward points: 919 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $90.06 $88.22 $85.47 $81.79 Contact US
Quantity:

100kHz-50MHz 5W Long-wave AM High-frequency RF Radio Power Amplifier

Desceiption:
- The RF amplifiers are linear power amplifier having a distortion, wide frequency range of characteristics that can apply to all forms of signal amplification. As tpms launch, wireless charging and other communications or remote controls act as the final stage of a power amplifier, transmit power to strengthen, increase the transmission distance, can be used as a driver amplifier to drive the last stage power amplifier. The long-wave wave, high frequency amplifier in universities, research institutes and radio enthusiasts can apply hands.

Amplifier main parameters:

- Amplifier frequency 100kHz-50MHz
-  single-supply voltage 12-15V, current 1A
-  amplifier gain:37dB
-  input 1mW (0dBm), the output power of 4W, working voltage is 12v. When the operating voltage to 15v, output power 6W
- impedence:50 ohm
-  input and output connectors SMA (female head)
-  size :103 × 90 × 50mm

PACKAGE :

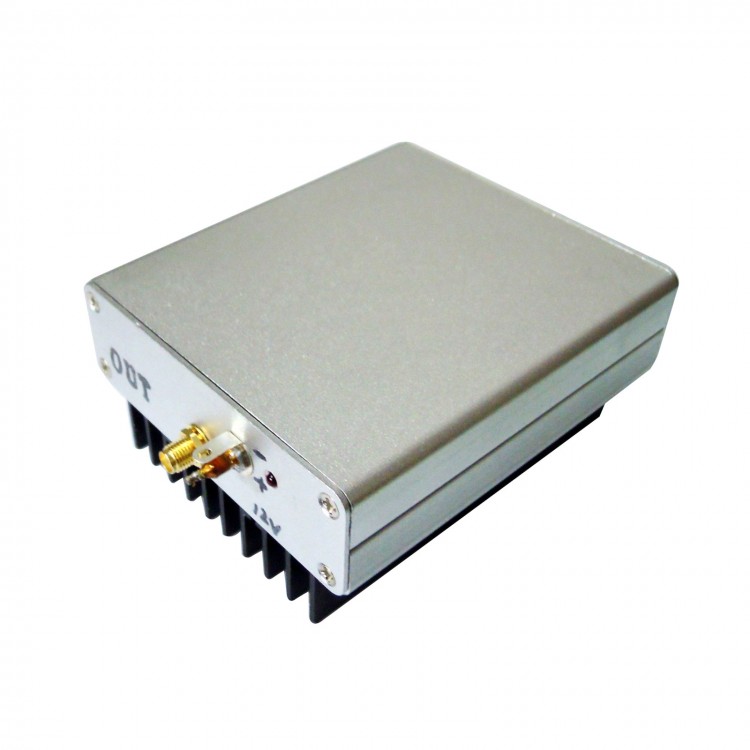

1pc module as picture show
