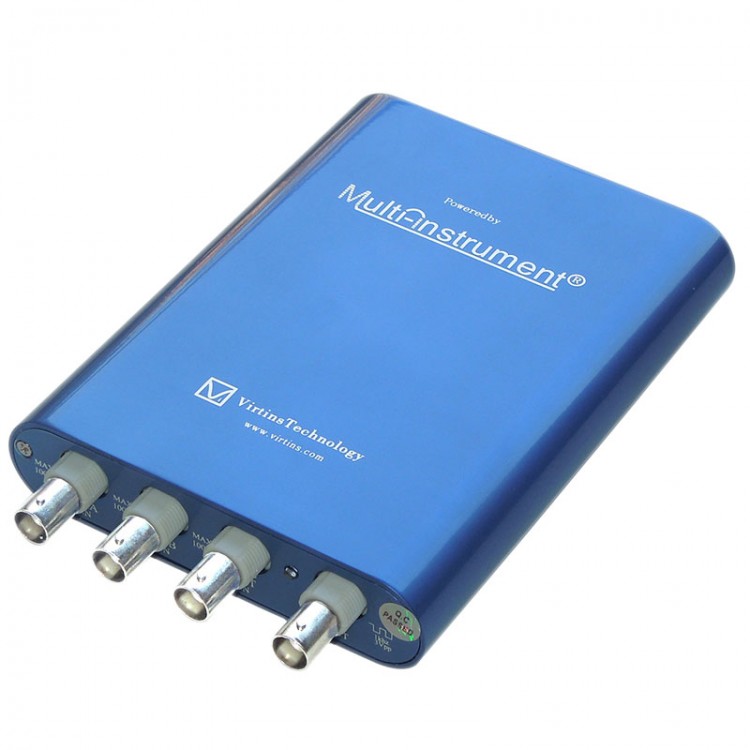

100M High Precision Virtual Oscilloscope Audio Analyzer DSO-2810 signal generator pro3.4 AWG

Notes

Hardware-based DSP bit resolution enhancement is a virtual instrument technology, the second generation of USB virtual oscilloscope features that are unique. Virtins Technology is the world's first company to achieve this functionality in USB virtual oscilloscope. If the combination of Multi-Instrument® software, USB DSO can be any desktop, laptop or tablet PC into a powerful oscilloscope, spectrum analyzers, multimeters, data loggers, signal generator, etc., all instruments can be run simultaneously . Powered by the USB port, metal enclosure. Small size, low power consumption, easy to carry. ADC and DAC also supports other hardware. For example: Sound Card MME / ASIO drivers, NIDAQmx card



Kit Contents

1. VT DSO-2810 hardware unit, and with a hardware bundled a Multi-Instrument (Universal Instrument) Professional software license

2. 2X60MHz oscilloscope probes P6060, with two attenuation positions: X1, X10

3. Signal Generator Test line (1 m)

4. USB cable (1.5 m)

5. CD (containing encrypted Multi-Instrument software and VT DSO-2810 driver)

6. Voltage calibration data



Unique features

1. Unique soft triggering algorithm is guaranteed not to miss any trigger point.

2. The unique algorithm ensures ultra-stable periodic signal is displayed.

3. The unique algorithm to achieve the accuracy beyond the display resolution of less than FFT frequency peak.

The ultra-fast screen refresh, typically 50 frames / sec.

5. Ultra-flexible DSP algorithms configuration

6. The ultra-flexible hardware options, allowing independent ADC and DAC hardware selection

7. Most Ergonomic graphical user interface design
