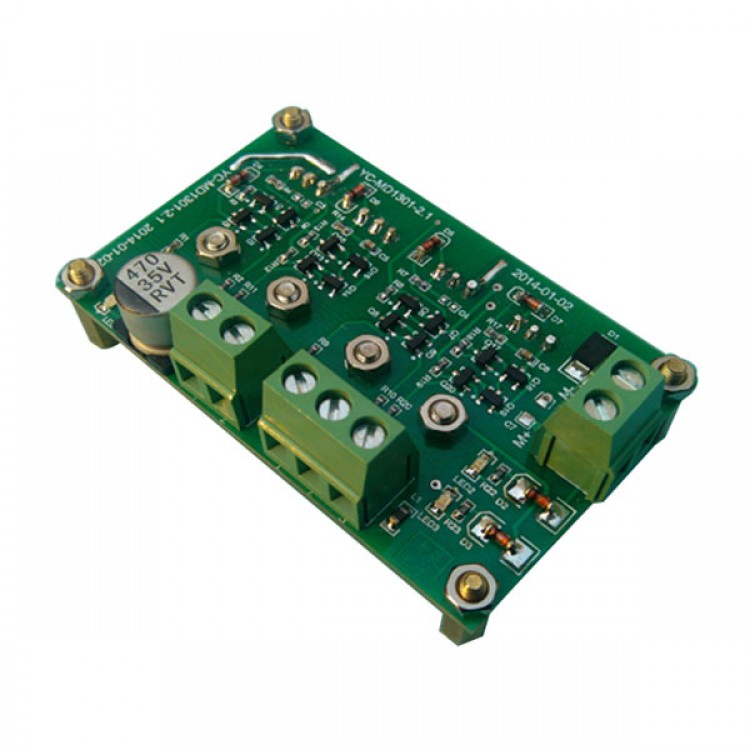

10A Single Channel DC Motor Drive Board Module Industrial Large Power MOSFET Single H Bridge w/ Braking Function

Description:

- Key components : 55A M0SFET tube
 - Driving voltage : 5 ~ 35VDC
 - Logic control level: high > 2.5V;
- Low <0.5V
- Drive Current : 10A
-  Working temperature : -40 ~ 85 degree
- Rated power : 350W
-  Dimensions 44 * 71 * 16mm

Features:
- using industrial-grade power MOSFET, continuous current up to 10A, the maximum instantaneous peak current up to 20A, low heat dissipation , no heat sink.
- jobs just to provide DC power control circuit without additional power supply.
- saving control of resources , it only takes 2-way MCU I / O control signals can be realized PWM speed control, reversing switch , emergency brake function.
- is compatible with both 3V and 5V microcontroller PWM duty cycle wide range ( 0 to 100% ) .
- TVS motor output has bidirectional protection tube , the motor can quickly drain away from the induced current , protection and control devices.
- Applications: Smart Cars, robots, finder , industrial control, etc.
- P1- logic control signal input terminal
- P P control signal input terminal ;
- D D control signal input terminal ;
- G signal reference ground ( the same power ground ) ;
- P2- drive power ( electrical power supply ) input
- V + supply positive range :5-35VDC;
- G power ground ( with the signal ground connected ) ;
- P3- drive output
- M + positive side driver outputs , connect the DC motor M +;
- M- negative terminal of the output driver is connected to the DC motor M-;
- Welcome to our shop, enjoy the shipping here, you can contact with me freely if any question, usually we will send datasheet,code via email . hope to do business with you.
