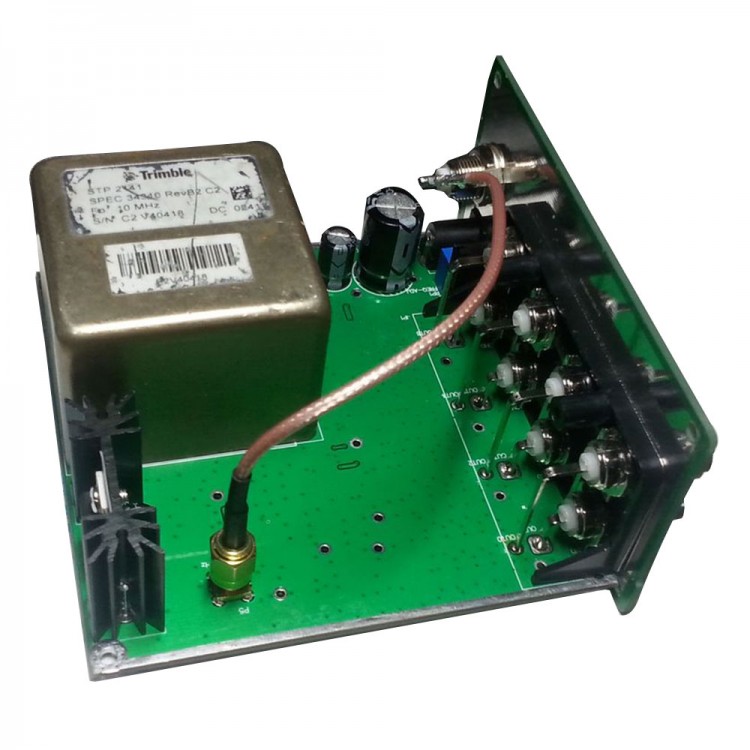

10M Frequency Distributor Distribution Amplifier 8 Channel Output OCXO Frequency Standard
Description
10MHz Distribution amplifier,10MHz OCXO frequency standard,8 port output
Power supply: DC11.7-12.9V, max18W
POWER:DC11.7-12.9V,MAX:18W
Output: 10M,0.1Vpp-5Vpp
INPUT:10M,0.1Vpp-5Vpp
Output: 8 channel, all 1VRMS(13dBm)
PWR. power supply indication
EXT 10M: external 10M output indicate
ERROR: light on, no output (internal OCXO breaks down, there is problem with circuit)
LED:PWR:POWER
EXT 10M:extern 10M input
ERROR:not output(inside OCXO error )
Accessories: AC110-220V-DC12V/1.5A power supply adapter
Size: W*H*L=100*55*120 (including BNC part)
weight:600g(net weight),800g(include adapter,package)
