10Mhz DDS Function Arbitrary Waveform Signal Generator Agilent Waveform Editor
Description:

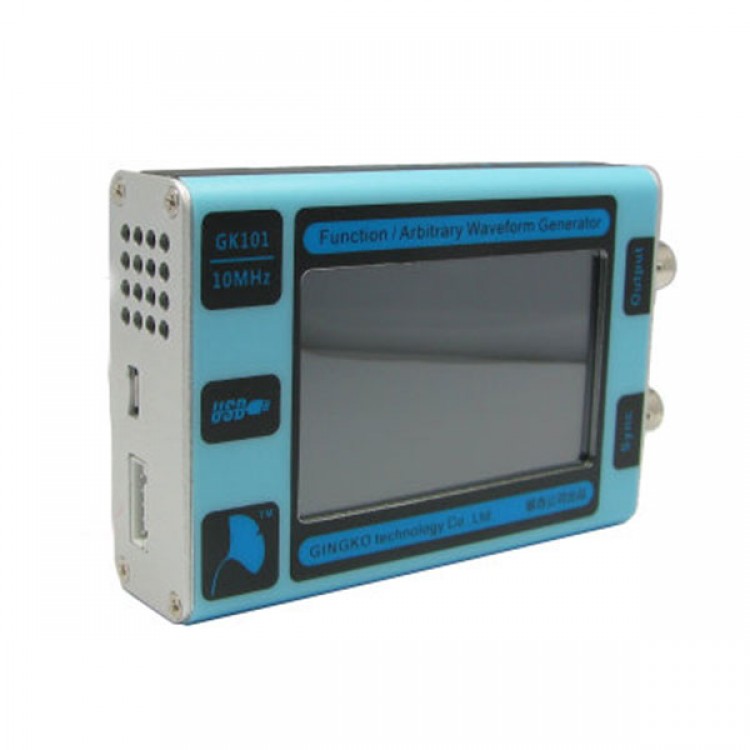

- Gk101 10MHz Arbitrary Waveform Generator based on a number of advanced technology, achieves functions that common instrument has in a small volume. The palm-sized instrument achieves 80M sampling rate, 10MHz maximum frequency, 10Vpp highest amplitude.
- The instrument has a full-featured management of arbitrary waveform output function. Arbitrary waveform data use file system management, the protocol is open to users .Users can easily manage multiple arbitrary waveform files through virtual U disk technology.
- The instrument uses a high-resolution 3-inch color LCD with a resistive touch screen. With very expressive English language interface, users can quickly use it to express waveform parameters perfectly.
- The instrument has a firmware upgrade function. GINGKO will gradually upgrade the instrument firmware based on user feedback .
1. Technical Indicators
#Waveform Characteristics
Standard Waveforms:
Sine SINC DC
Square Noise Gaussian
Triangle Exponential rise Negative half-wave
Sawtooth rise Exponential fall Positive half -wave
Sawtooth fall Positive full-wave Negative full-wave
Sample Rate: 80MS / s
Vertical Resolution: 14bit
Arbitrary Waveform Length: 2 ~ 32K points
Built-in Storage: 128M
# Frequency Characteristics
Output Range:
Sine: 1mHz ~ 10MHz
Square : 1mHz ~ 10MHz
Others: 1mHz ~ 10MHz
Resolution: 1mHz
Accuracy: 50ppm
# Voltage Characteristics
Output Range: 10mVpp ~ 10Vpp
Resolution: 12bit
Accuracy: 8% of setpoint
Offset Range: 5V
Amplitude Flatness: $ 0.3dB
# Square Characteristics
Duty Cycle :
1mHz ~ 1MHz: 0.1% ~ 99.9%
1MHz ~ 10MHz: lock 50%
Rise / Fall Time: <20ns
Overshoot: <5%
# General
Output Impedance: 50 Ω
Ramp Symmetry: 0.1% ~ 99.9%
Sync Signal: 4.8V ~ 5.2V, TTL level
Power Requirements: DC 4.75V ~ 5.25V, <400mA
Display Characteristics: 3-inch, 240x400 resolution
Dimensions (L x W x H): 116mmx76mmx26mm
Weight: 180g
