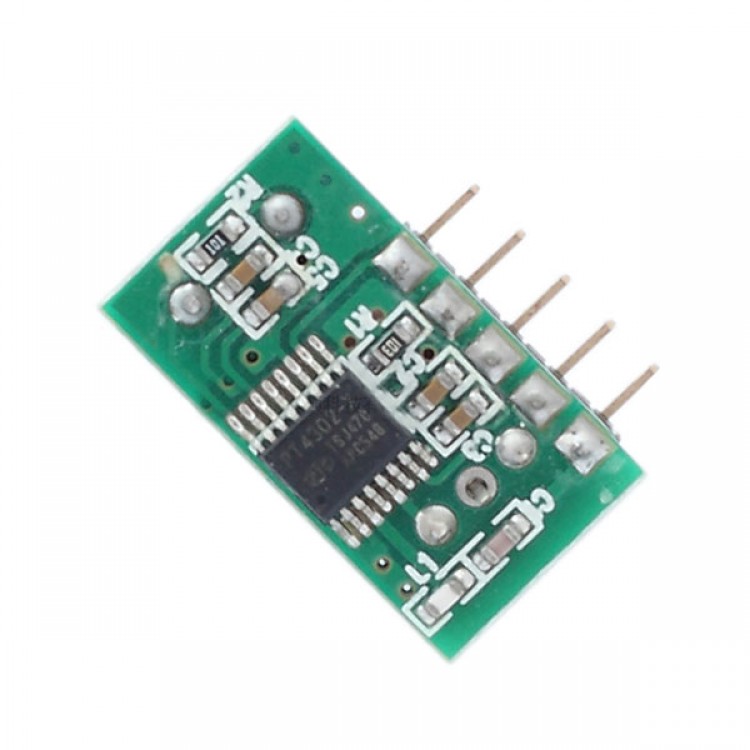

10PCS HPD8406G 315M 433M ASK Wireless Superhet Receiving Module PLL Stabilize Frequency Wide Voltage OOK
Description:
- HPD8406-G module is ASK receiving module, superhet structure, IC with PLL circuit, adopting high stable crystal oscillator, stable working frequency, receivimg thin tape width, more convenient to use, has hibernation function, very short start time, energy saving
Parameters:
- Model: HPD8406-G
- Working voltage: 2.4-5.5V
- Working current: 2.6mA
- Working temp: --40---85degree
- Working frequency: 315MHz/ 390MHz/433.92MHz
- Receiving sensitivity: -117dBm (data transmission: 1.2Kbps)
- Data speed: 0.6-10Kbps
- Hibernation function: CE pin low level hibernation
- Start up time: 3ms-5ms
- Hibernation current: 2uA
- Dimension: DIP: 20*11mm, pin length: 3mm
Package inlcudes:
- 10PCS Receiving Module
Note: Please leave a message of choosing 315M or 433M type when you placing an order
