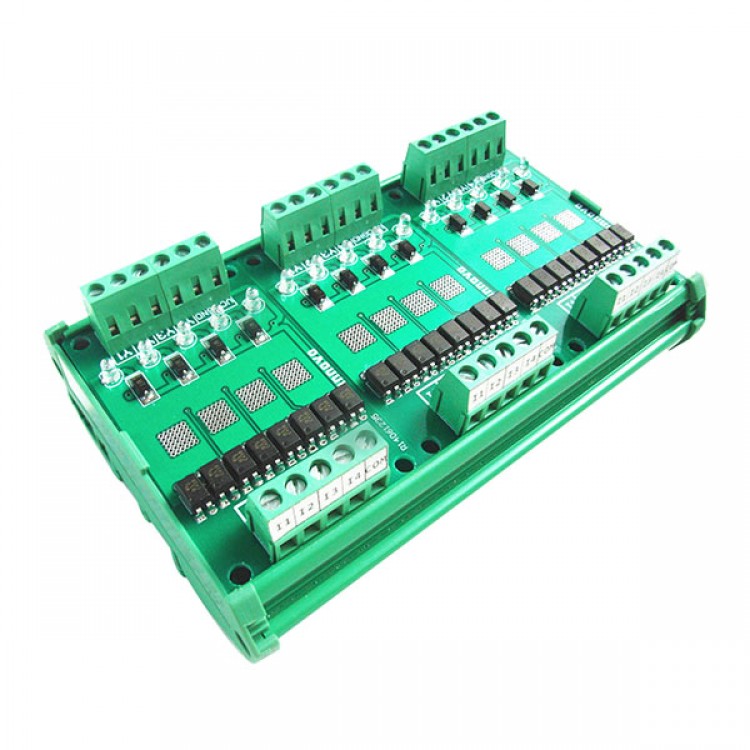

12 Channel Relay PLC DC Drive Board Control Board Amplifier Board Isolation Board Output Board
Description:
- Used for control electromagnetic valve, DC motor, LED light DC power supply device. Can be used for input output isolation board
- Input terminal voltage: 3.3V, 5V, 9V, 12V, 24V optional, current is smaller than 5mA/ channel
- Output termianl voltage: 5-36V DC . Each channel max current is 5A, 4 Channel current is not bigger than 10A
- Conductor resistance: 16m ohm
- Input output is fully photoelectric isolated
- For PLC use, support PLC output by NPN and PNP and PLC output by relay
- Overcurrent protection, over voltage protection, overheat protection
- Four channel for each group, 12 channel is composed by three pieces
- If you need 4, 8 channel, please contact with us
- Size: 140*89*45mm
