120W DC12V Solid State Power Modules DC Power Supply Board LR1204-120W12VDC-Q

Tags: Power Supply Board

Availability: Out Of Stock

  • Price:$18.71
  • Price in reward points: 187 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.34 $17.96 $17.40 $16.65 Contact US
Quantity:

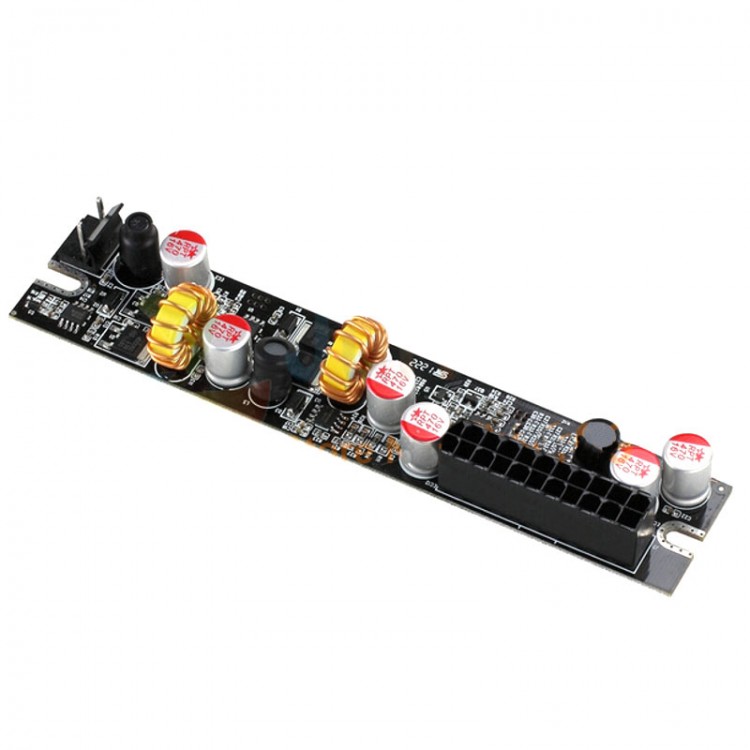

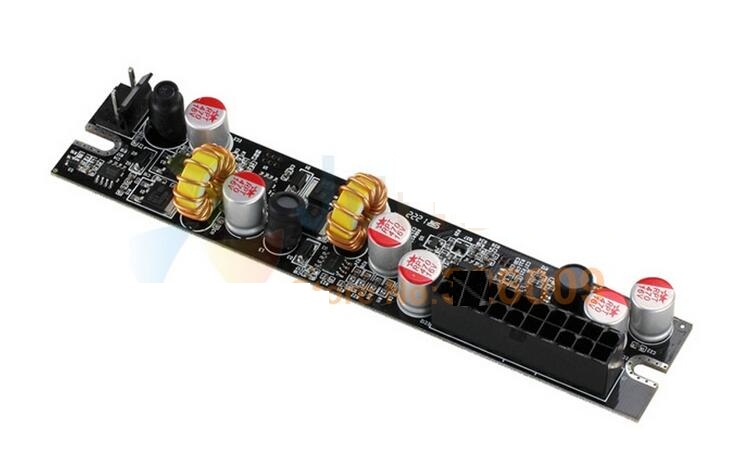

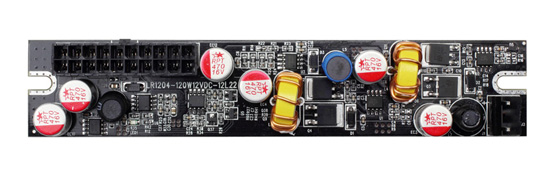

120W DC12V Solid State Power Modules DC Power Supply Board LR1204-120W12VDC-Q


Product Description:12V input DC-ATX mute power includes 24 cable,independent CPU power supply,2 pcs SATA interface,1pcs 4 interface.LR1204-120W12VDC-Q

Input Required:
- Input Voltage Range: 11.2vdc----14.8vdc
- Incoming Current Range: 12.0A@Max at11.2vdc
- Input Surging Current: 12.0vmax @12vdc
- Work Efficiency: ≥85%

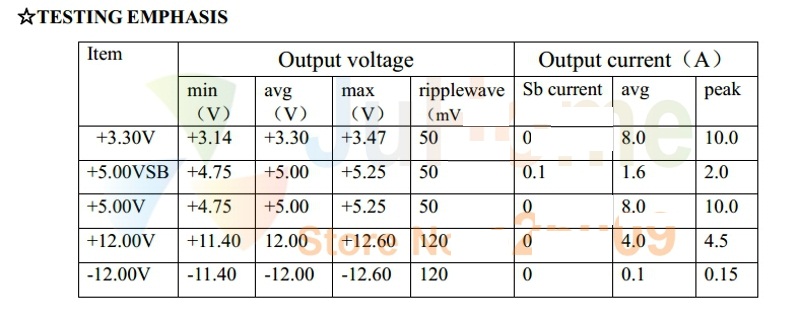

- Output required:5-group power output (Vin=19VDC)

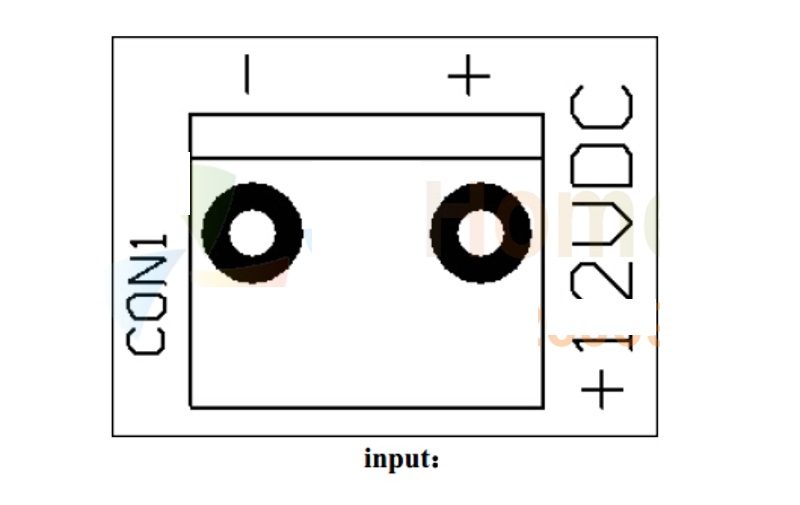

Input/output interface:

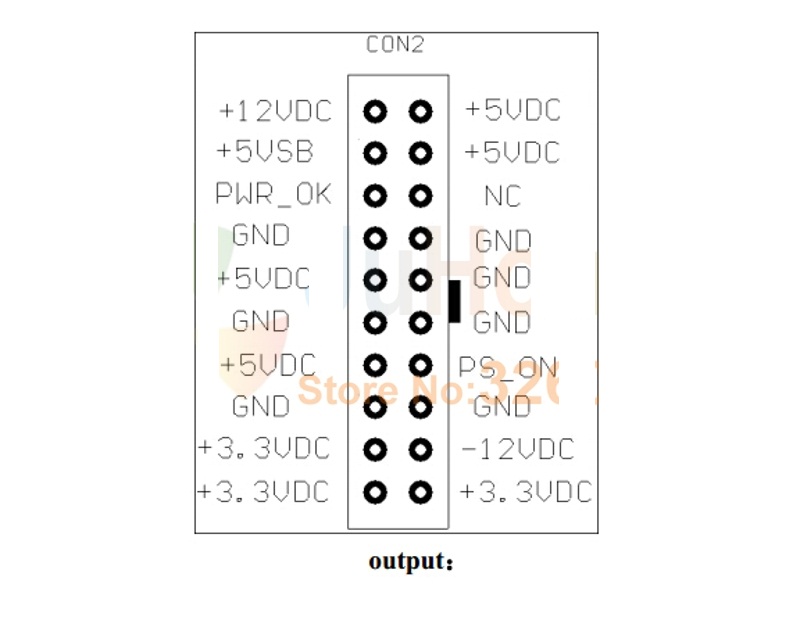

Output socket interface:
- Defencive function  (for+3.3V, +12V,+5.00V&+5.00VSB power output)
- OCP: output shut down when output current reaches the peak point.
- Short-circuit protection: output shut down when short-circuit.

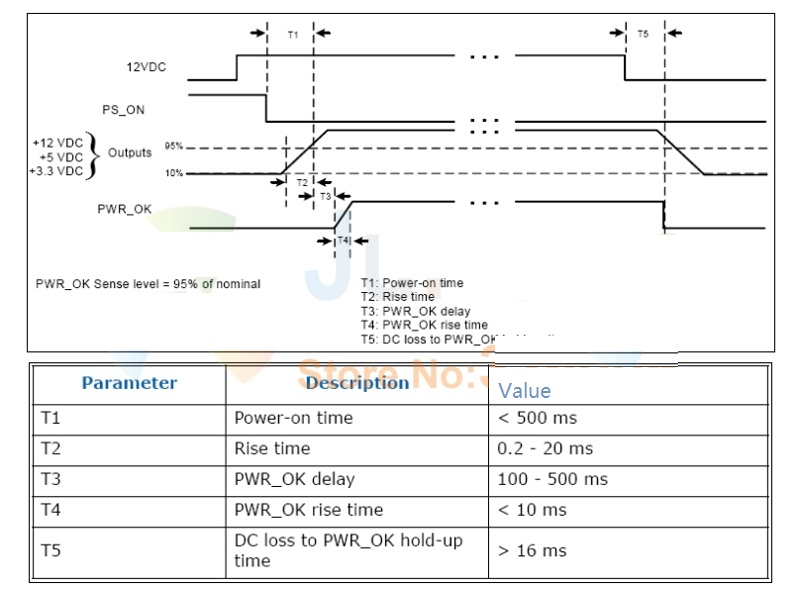

PSU timing sequence:

Environment description:
- Working temperature/humidity:15℃ to 35℃/45%-75%
- Reposition temperature/humidity: -40℃ to +70℃/ 10%-90%
- Atmospheric pressure:86Kpa----106Kpa

Other parameters:

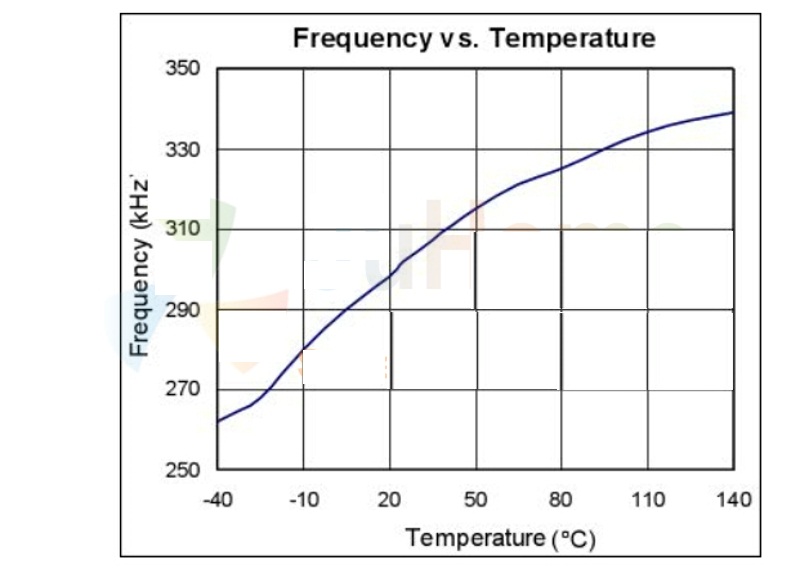

- Working frequency: Icbuilt-in oscillator(250-350)kHz@Vcc=12V

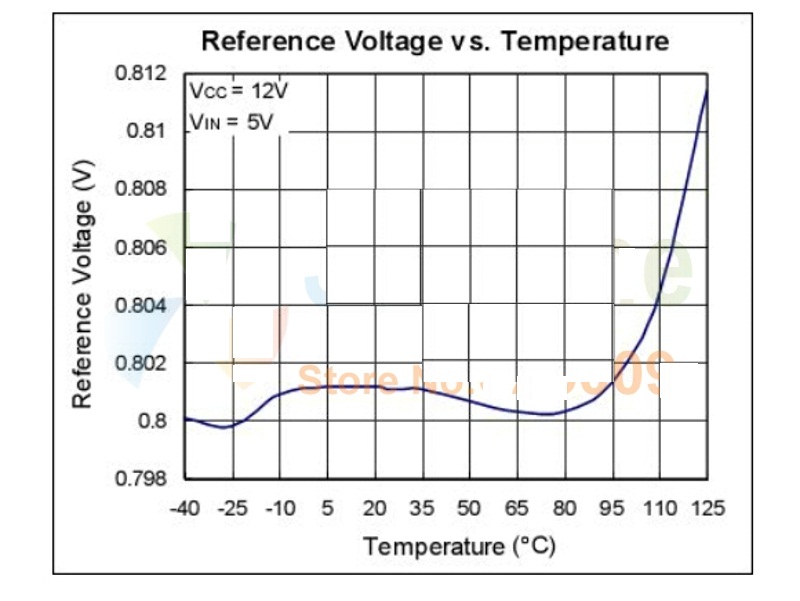

- Feedback reference voltage: 0.8V±0.016@12VDC

Structure parameter:EMI analog testing data:1MH,1MV,3MH,3MV.
Feedback reference voltage: 0.8V±0.016  at12VDC

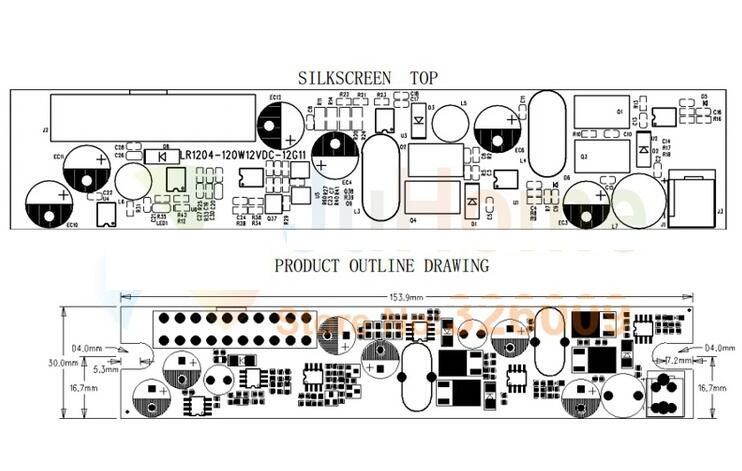

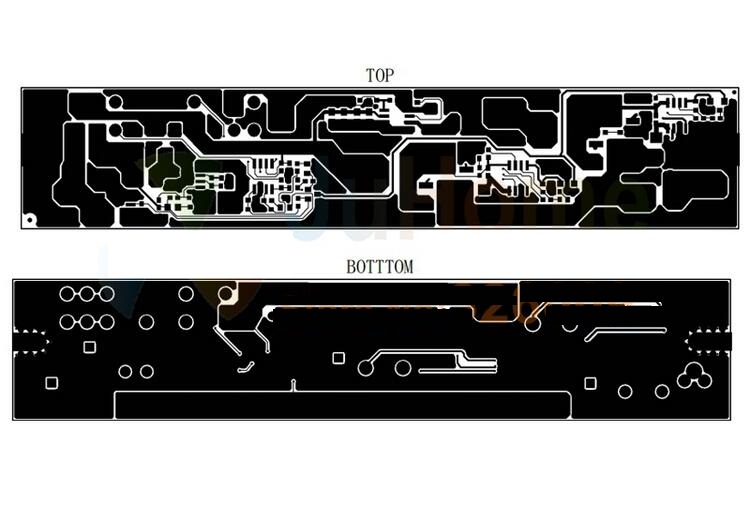

Design drawing:

Package List:
- 1 x  Power Supply Board LR1204-120W12VDC-Q
