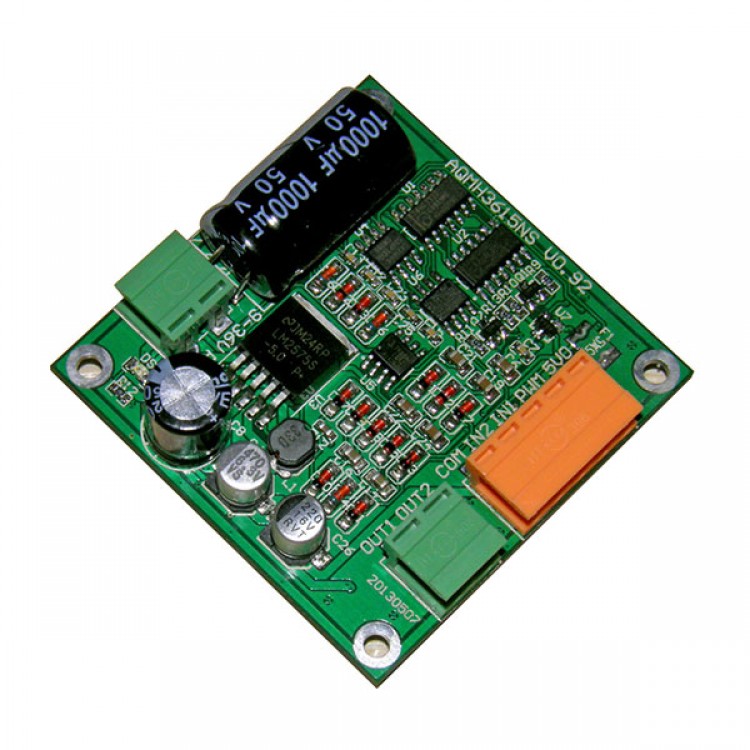

12V 24V 36V PWM 360W High Power DC Motor Driver Board Module Rotate
Features:
- Small size: 5.5*5.5cm
- Voltage range: 6.5-41V, with low voltage protection
- Max.contiunous load current 12A(no heat emission), 15A(simple heat emission), 20A(Thick large heat sink), peak current 110A
- Three wire control speed, forward/reverse rotate and brake
- Support full PWM, could use buttons control two directions rotation, PWM effective range 0.1%~100.0%
- Interface with ESD protection
Specifications:
|
Input voltage |
DC6.5Vï½41.0V |
Don't reverse connection, and exceed 41V, otherwise it will break the module |
|
Max. continuous load current |
12A(no heat sink) 15A(simple heat sink) 20A(thick large heat sink) |
|
|
Output power |
12V 180W 24V 360W 36V 540W |
If simple heat sink, 15A |
|
Peak current |
110A |
MOS tube |
|
5V Max. output current |
500mA |
0.5A self recover fuse |
|
Control signal high level voltage (VHI) |
2.0Vï½5.5V |
Compatible3.3V/5V TTL level |
|
Control signal low level voltage(VLI) |
0Vï½0.8V |
hanging is 0V |
|
Control signals current |
50uA |
Voltage is 5V |
|
PWM effective range |
0.1%ï½100.0% |
|
|
PWM Min effective width |
200ns |
|
|
Working temperature |
-25âï½85â |
