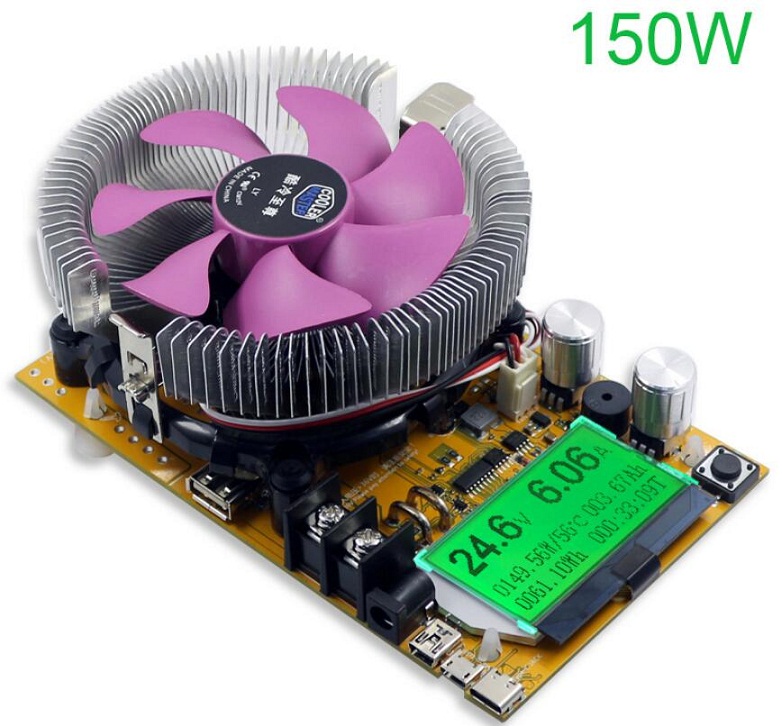

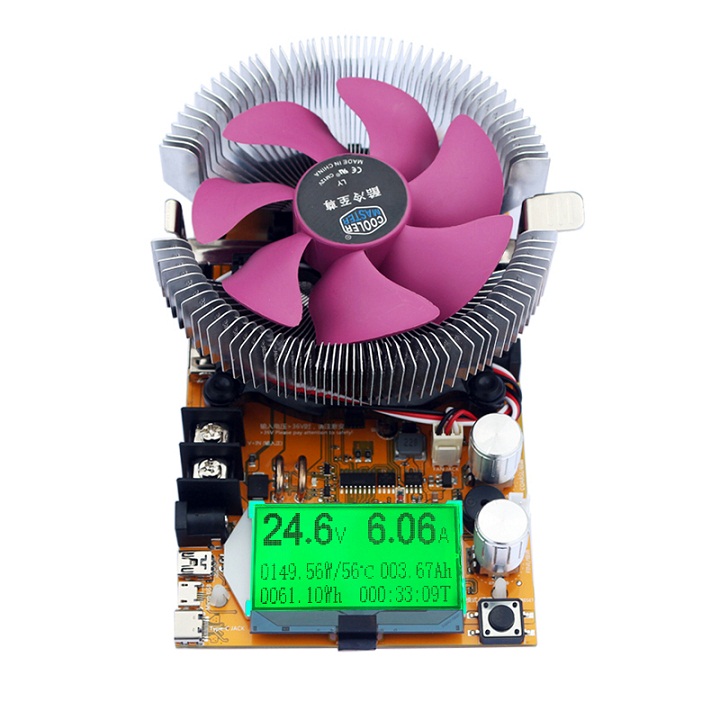

150W Digital Battery Capacity Tester Voltmeter Adjustable Constant Current Electronic Load Charger USB Meter Indicator

150W Digital Battery Capacity Tester Voltmeter Adjustable Constant Current Electronic Load Charger USB Meter Indicator

Product Description:
- It can be taken as electronic constant current load,USB tester,cable detector.Built-in ontelligent temperature control and large power auto protection,safe discharger.
- Test charger function voltage and maximum current
- 8 in 1 measurement: voltage, current,power,battery capacity,impedance,temperature,energy,time,external waterproof temperature probe.

Scope of application:Universal test all kinds of batteries, all kinds of power supply, all kinds of charger

Specification:
- Input interface/Output interface:100A large current  occluding screw column
- Voltage testing range:0.00V~200V;Resolution accuracy:0.01V
- Current testing range:0.00A~20A;Resolution accuracy:0.01A
- Capacity accumulated range:0~999.999Ah;Resolution accuracy:0.01Ah
- Electricity accumulated range:0~9999.9Wh;Resolution accuracy:0.01Wh
- Power measurement range:0000.00~150/180 W;Resolution accuracy:0.01W
- Impedance measurement range:1~999.9 ohm;Resolution accuracy:0.01ohm
- Temperature measurement range:0~99℃,0~99℃;Resolution accuracy:1℃
- Timing the max time:999 hours 59minutes 59 seconds;Resolution accuracy:1s
- Timing testing alarm setting:count down 24 hours Arbitrary setting value
- Small current standby alarm threshold parameter and timing:<2W/0.5 hour; >0.5W begin timing
- 4~30V DC voltage provides electricity for testing system
- Refresh time:>500mS/times;> 500mS/times
- Testing speed rate:about 0.5 times/s
- Over voltage over current setting alarm method:display warming interface alrm users
- Over voltage warning setting range:1~200V
- Low voltage warning setting range:0~190V
- Over current warming setting range:0.2~100A
- Display screen type:micro power consumption crystal module LCM black font green backlight Chinese English display screen

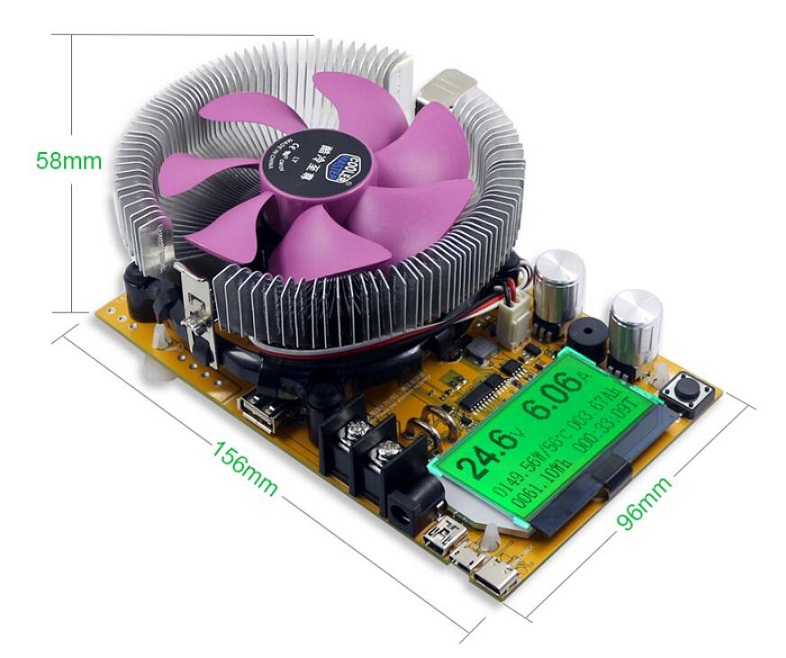

- Size:156x96x58mm
- Working temperature:-10~+60℃; -10~+60℃
- Working humidity:10~80℃ (no condensation);10~80℃(no doubt)
- Working gas pressure:80~106kPa

​Operation method:
Keystrokes using method and the capacity, power,time reset Settings:
1) Reset button long-press all data (mAh,Wh,00:00:00)
2) Quickly button twice - capacity Reset (mAh)
3) Quickly button three - power reset (Wh)
4) Quickly button four - time reset (00:00:00)
5) Quickly button five - Set up automatic standby and Discharge the countdown to remind regularly
6)When no load output no-load,quick seven keys,and for the current zero to zero in the current environment temperature for accurate calibration,so more can do more accurate measurement in small current.

Package List:
- 1 x 150W USB Mobile Power Tester
- 1 x Charger
- 1 x Crocodile clamp cable
- 1 x Crocodile clip to USB male head
