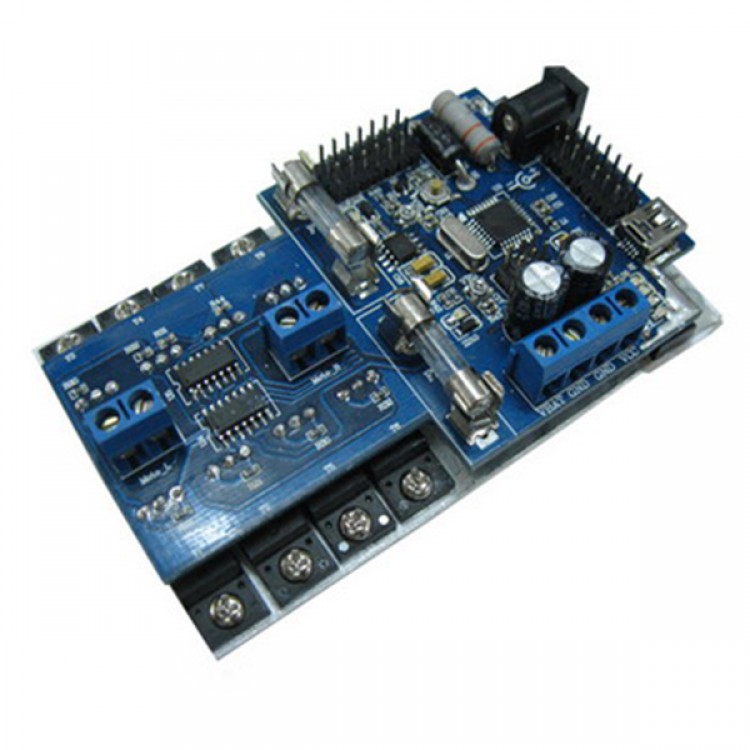

15A High Power DC Motor Driver Controller for AVR Single Chip 4WD 6WD Robotics Smar Car Chassis

15A High Power DC Motor Driver Controller for AVR Single Chip 4WD 6WD Robotics Smar Car Chassis

Description:
- The high power motor drive suv/controller, the biggest drive current is 15 a low voltage design is adopted in design and system used by the power supply is a set of voltage of 7.2 V battery, the battery is widely used in wireless remote control car, of course, also can use the higher voltage of battery (the highest voltage is 18V)
- The motor driver/controller compatible AVR and Arduino two systems, this allows the user to fit is simple rapid and the high power motor driver/controller, heat sinks and fuse with large size, improve the security and stability of the system

suitable for High Power 4WD car,6WD car chassis

Features:
- Duplex continuous current 15 a H bridge based on MOSFET driver circuit; A blown fuse protection
- H bridge circuit with current detection function
- Single chip microcomputer can detect the fuse fusing, and through the LED display its state
- Control panel above have 7 channel servo control nterface, can be used directly and steering gear connection
- Control panel on the right side with 5 analog voltage input interface, convenient sensors such as the extension of the use
- The bottom right of corner is the current of 5 a "(low dropout linear regulators) voltage regulator, provide the power for controlling the steering gear and sensor
- Through the control panel on the 2 a current regulator, to lead acid nickel cadmium and nickel metal hydride rechargeable batteries
- Single chip computer can monitor the battery voltage in order to better control the battery
- You can use controller or USB and serial port and I2C communication; But can be by wireless and analog input
- Controller main control chip for the AVR microcontroller: Atmega 168, flash memory with 16 k
- Working voltage:7.2V
- Working current:15A

Package list:
- 1 x 15A High Power DC Motor Driver Controller
