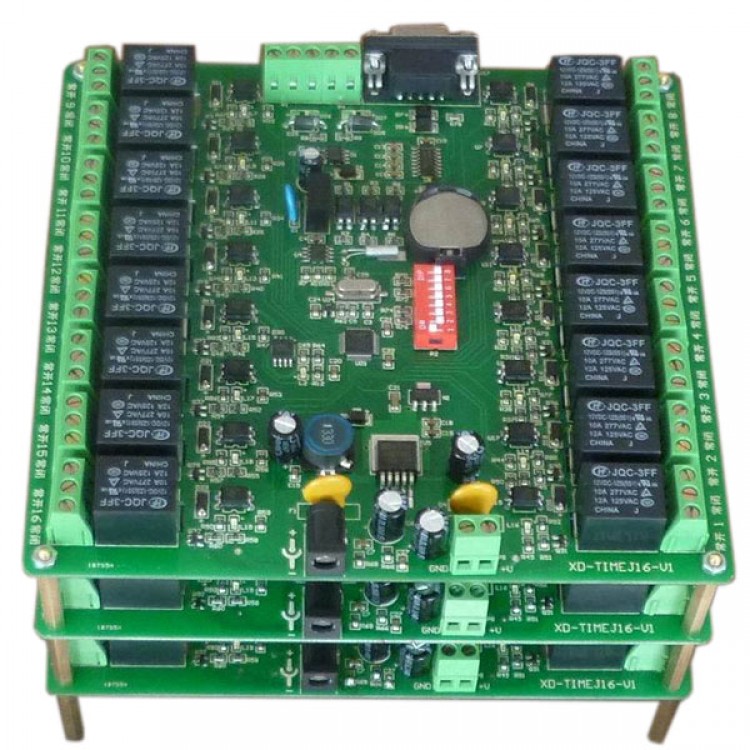

• 16 Channel Relay Module Board + 232 Control w/ Isolation Protection

16 Channel Relay Module Board + 232 Control w/ Isolation Protection

Availability: In stock, usually dispatched in 1 business day

  • Price:$48.73
  • Price in reward points: 487 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.76 $46.78 $45.32 $43.37 Contact US
Quantity:

16 Channel Relay Module Board + 232 Control w/ Isolation Protection

Description:

- 16 channel relay control board, trigger output, 232 communication, can set address 0-255, multimachine cascade connection, It can control16*256=4096 panel points at most
- Support MOUBUS-RTU agreement, can use group software to control. It is compatible with self definition bus agreemnt, for software programming users. Providing VC++6.0 control software (including source code) VB6.0 control software, asemble control software
- Board size: 165mm*155mm
- Install hole dia: 3.5mm
- Installl hole distance: 155mm*147mm
- Power supply: 12V (If you need 24V, please leave us a note)
- Current: max 1A
- Trigger capacity: AC250V10A, DC30V10A
- Output indication: 16 relay output has 16 output indicating light
- Communication agreement: adopting 232 agreemnt communication, baud rate 9600, eight data bit, one stop bit, no check bit. Each data frame includes 8 bytes. Bidirectional data transmission, data includes chicking and bytes, if there is sth wrong with data checking, data will be discarded

Features:
- Single chip input output all use coupling isolation, control part can be independently power supplied or use same power supply with relay
- Communication part: communication power supply adopts isolation power supply , signal uses coupling isolation, gurantee the PC safety
- Single chip: atmega 16 industrial level chip, super strong anti inteference
- Software: with VB upper monitor testing software and souce code, with tiem control software
