16 Subdivision TB6560-3A CNC 42 57 Driver Board
  • 16 Subdivision TB6560-3A CNC 42 57 Driver Board

  • SKU:22698
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 2
  • Price:$19.18
  • Price in reward points: 192
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.80 $18.41 $17.84 $17.07 Contact US

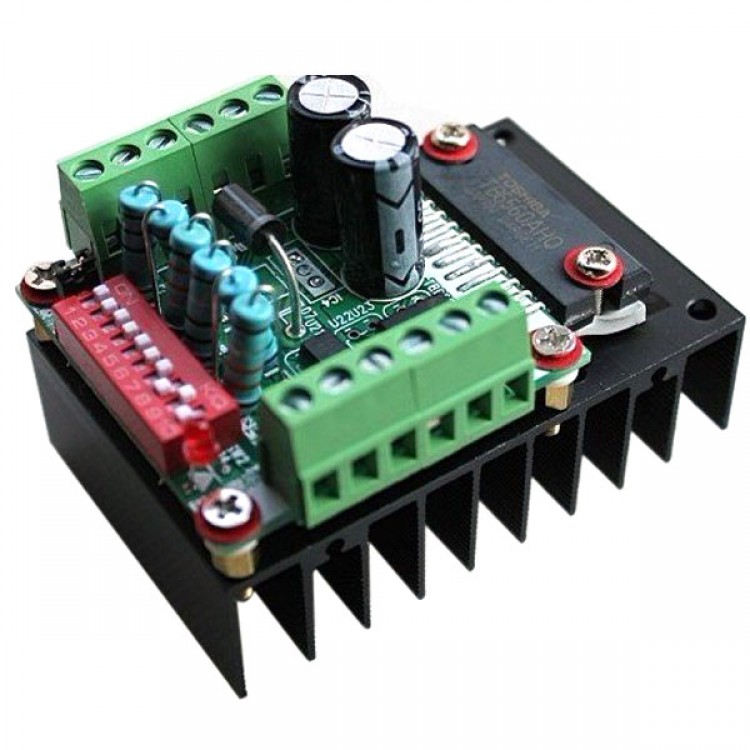

16 Subdivision TB6560-3A CNC 42 57 Driver Board
Specfications:
- size: 76 (long) * 50 (wide) * 49 (high) MM (including radiator)
- input pulse and direction by using 2630 signal light lotus root
- automatic half flow function, reduce motor fever.
- had temperature protection function.
- IC will protect the output when IC temperature more than 150 degrees, can be set up four attenuation model, in view of the different motor, match different attenuation model can reduce operation noise
- have current set function.
- 0.5 A, 1 A, 1.5 A, 2 A 2.5 A, 3 A ,Adaptation 42, 57 series motor.
- wide working voltage.
- The input voltage DC: 9-36 V. We recommend is the working voltage of 24 to 32 V. Although the driver board also can let 86 motor turn up, but suggest you don't to drive 86 motor, because TB6560 is not suitable for driving 86 motor

current

0.5A

1A

1.5A

1.5A

2A

2.5A

3A

SW1 and  SW4

ON

OFF

OFF

ON

ON

OFF

ON

SW2 and  SW5

OFF

ON

OFF

ON

OFF

ON

ON

SW3 and  SW6

OFF

OFF

ON

OFF

ON

ON

ON

subdivision

SW7

SW8

Whole step

OFF

OFF

16 subdivision

ON

OFF

8 subdivision

ON

ON

Half step

OFF

ON

Attenuation model

SW9

SW10

quick Attenuation

OFF

OFF

25% Attenuation

ON

OFF

50% Attenuation

OFF

ON

slow Attenuation

ON

ON

Packing list:
- 1 x TB6560 Driven Board
