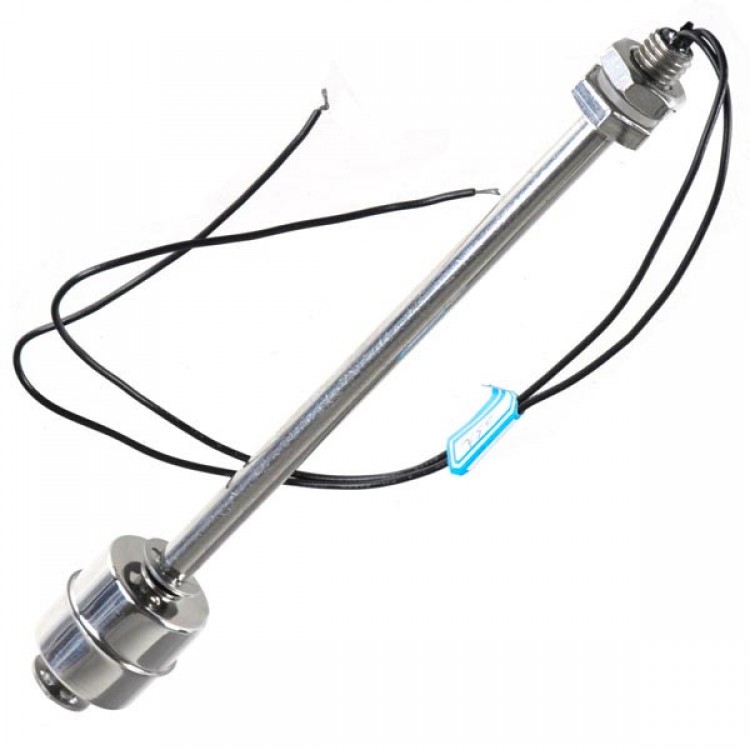

180010 Water Level Control Stainless Steel Magnetic Float Switch

Availability: Out Of Stock

  • Price:$7.79
  • Price in reward points: 78 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $7.63 $7.48 $7.24 $6.93 Contact US
Quantity:

180010 Water Level Control Stainless Steel Magnetic Float Switch
- Ideal for Water level control
- Working Temperature: -30C~120C
- MAX.switch Voltage 200VDC

Specification:
- Ideal for water or liquid level with PH-/PH+
- Material of Body: SUS304
- Material of float: SUS316
- Output: Normal open with 10W
- Material of screw net & E-ring: SUS304
- Proportion of float: 0.6kg/cm3
- Max pressure: 25kg/cm2

Description

Parameters

Contact Position

Upper

Switching Power

10W

Switching Voltage (Max)

DC200V

Breakdown Voltage (Min)

200V

Switching Current (Max)

0.7A

Carrying Current (Max)

DC1.0A

Initial Resistance (Max)

0.2ohm

Insulation Resistance (Min)

100ohm

Operating Temperature

-30 – 120 degree C
