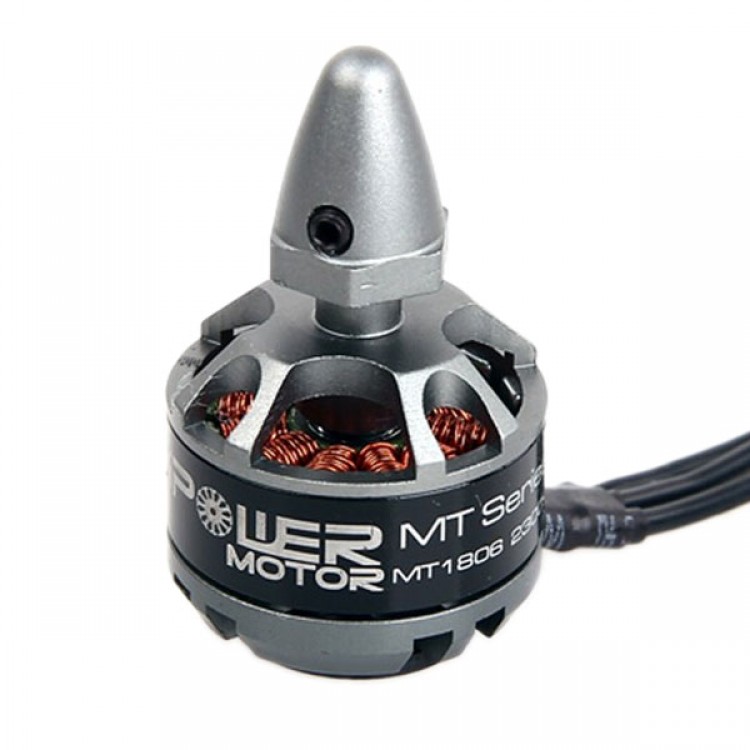

• 1PCS iPower MT1806 2300KV CW Motor w/thread Shaft for Multicopter FPV Photography

1PCS iPower MT1806 2300KV CW Motor w/thread Shaft for Multicopter FPV Photography

Availability: In stock, usually dispatched in 1 business day

  • Price:$15.32
  • Price in reward points: 153 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.01 $14.71 $14.25 $13.63 Contact US
Quantity:

1PCS iPower MT1806 2300KV CW Motor w/thread Shaft for Multicopter FPV Photography

Specification:

Motor Kv 2300 RPM / Volt
Stator Diameter 18.0 mm
Stator Thickness 6.0 mm
No. of Stator Arms 12
Magnet Poles 14
No-Load Current (Io/10V) 0.6 Amps
Motor Resistance (Rm) 0.117 Ohms
Max Continuous Current 14 Amps
Max Continuous Power 150 Watts
Weight 21 Grams
Outside Diameter 23.5 mm
Body Length 18 mm
Overall Shaft Length 45.0 mm
Max Lipo Cell 2-3s

Propeller mounting cross mount or reference to below imagehttp://www.iflight-rc.com/media/wysiwyg/1806_datas.jpg

Package included:
- 1 x MT1806  CW motor
- 1 x Prop nut
- Screws
