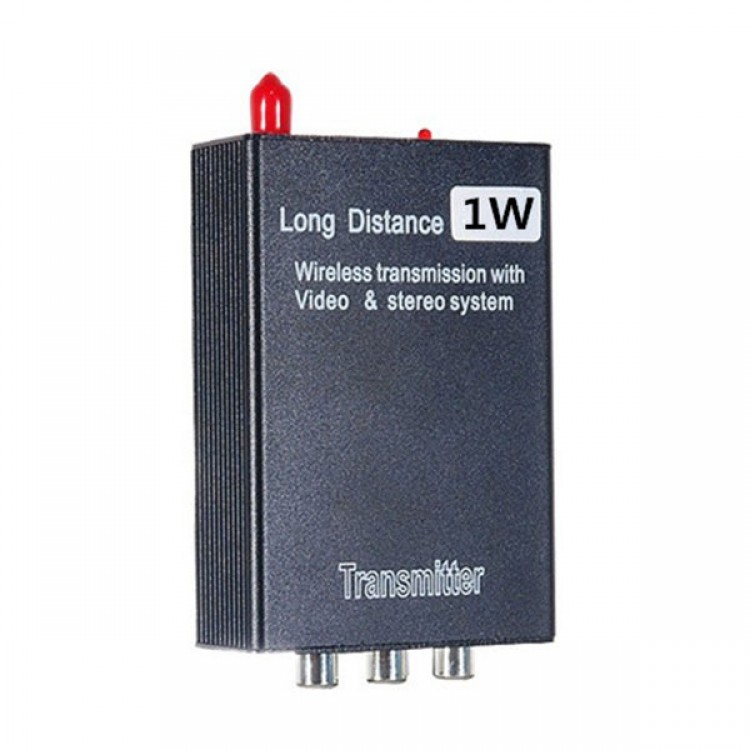

1W 2.4G Wireless Monitor Transmitter Wireless Transmitter Receiver RX TX for FPV Photography
Features:
- 2.4G wireless audio video transmission system is a kind of wireless device that can transmit images and sound to your TV and PC
- This device adopts 2.4GHz international universal frequency, adopting RF COMS highly integrated IC, highly integrated power amplifier and voltage controlled oscillator, the power amplifier adopts GaAs chip, excellent large power transmitting, long distance receiving,
TX Parameters:
- Power: 1W (1000mw)
- Available channel: 8-CH
- Working frequency 2370mhz---2510mhz
- Frequency modulation mode: FM/FSK
- Video format: PAL/NTSC
- Audio input impedence: 1K ohm
- Video input impedence: 75Ohm
- Video output level: 1Vp-p
- Working voltage: 12V
- Working current: 300mA-350mA
- Working temp: -20---120degree
- Working humidity: 85%RH
- TX weight: 180g
- Dimension: 102*60*30mm
RX Parameters:
- Receiving antenna: 7dbi omnidirectional antenna
- Available channel: 8-CH
- Working frequency 2370mhz---2510mhz
- Frequency modulation mode: FM/FSK
- Receiving sensitivity: -90dbm
- Audio input impedence: 1K ohm
- Video input impedence: 75Ohm
- Video output level: 1Vp-p
- Working voltage: 12V
- Working current: 150mA-200mA
- Working temp: -20---120degree
- Working humidity: 85%RH
- TX weight: 130g
- Dimension: 102*60*30mm
