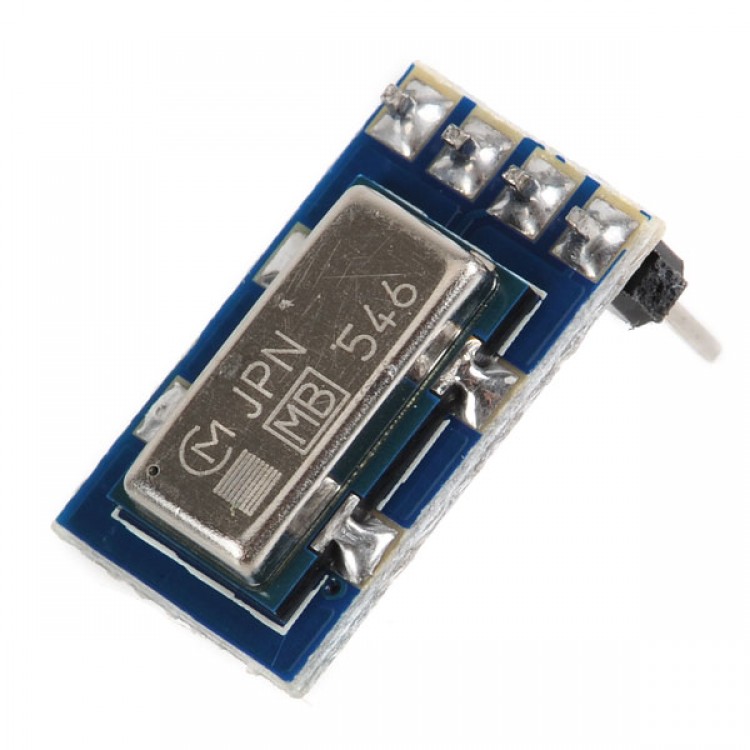

1xSingle-axis Gyroscope Analog Gyro Module ENC-03MB Module with Circuit Diagram

Availability: Out Of Stock

  • Price:$9.02
  • Price in reward points: 90 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.84 $8.66 $8.39 $8.03 Contact US
Quantity:

1xSingle-axis Gyroscope Analog Gyro Module ENC-03MB Module with Circuit Diagram
Description:

- Single-axis gyroscope analog gyro module ENC-03MB module with the circuit diagram
- Name: ENC-03 module
- (Single-axis gyro module)
- Chip: ENC-03MB
- Op amp: The MCP601 (SOT23-5 package, excellent performance)
- Power supply :3-5v
- Output mode: analog output
- Ultra-small size: 10mm * 17.5mm
Package include

- 1xSingle-axis gyroscope analog gyro module ENC-03MB module with circuit diagram

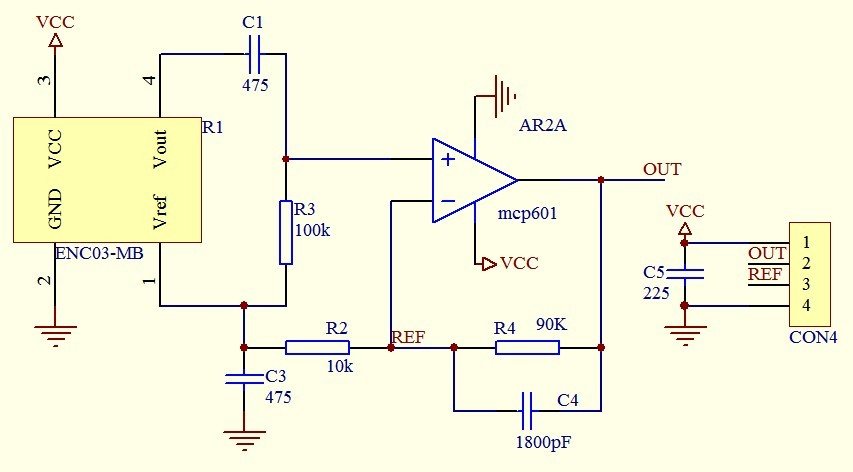

PDF standard connection

Schematic

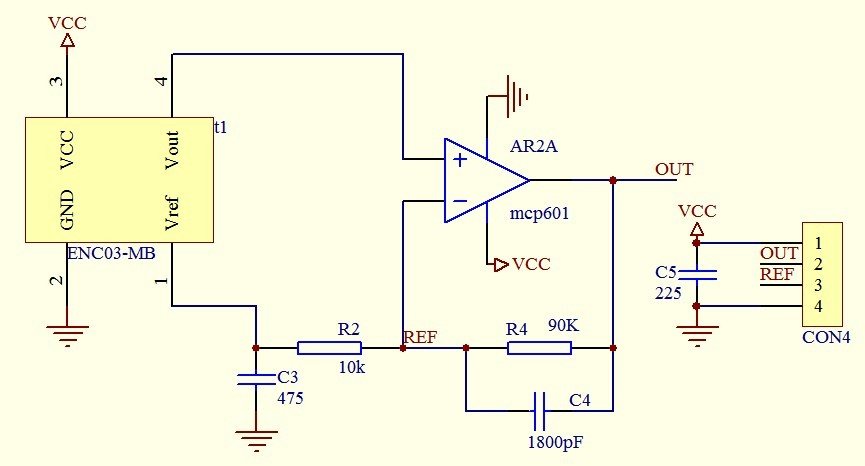

Direct coupling connection
