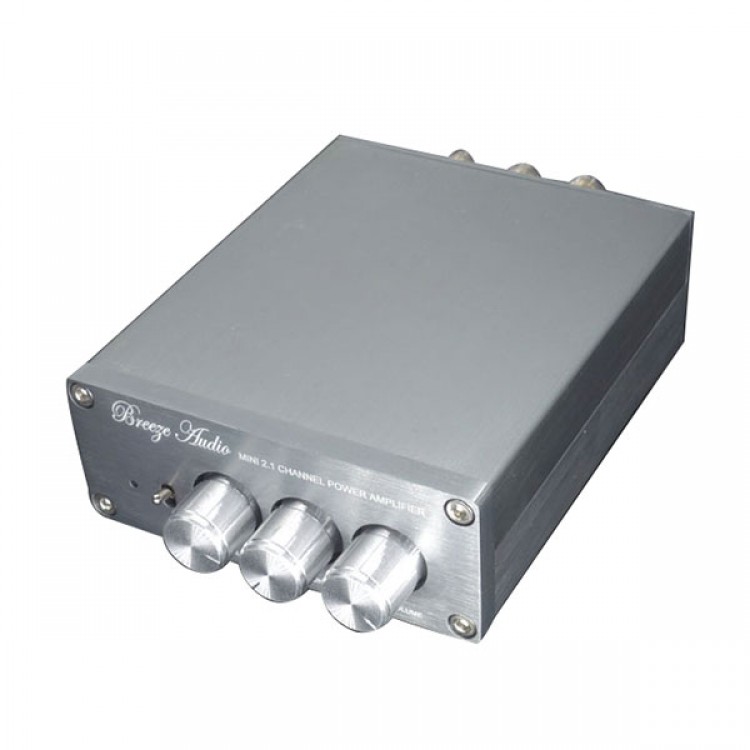

• 2.1 HIFI Exquis Digital Integrated Amplifier TPA3116D2 50W+50W+100W(bass) Max without Power Supply

2.1 HIFI Exquis Digital Integrated Amplifier TPA3116D2 50W+50W+100W(bass) Max without Power Supply

Availability: In stock, usually dispatched in 1 business day

  • Price:$40.70
  • Price in reward points: 407 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $39.89 $39.07 $37.85 $36.22 Contact US
Quantity:

2.1 HIFI Exquis Digital Integrated Amplifier TPA3116D2 50W+50W+100W(bass) Max without Power Supply

Product description:

- The TPA3116D2 amplifier board with two digital amplifier chip as the core , one for left and right channels , another for bridge driver subwoofer
- It's small size, high efficiency , high power characteristics.
- Regardless of the cost of materials , capacitors Philip , Thomson, ruby. Taiwan- quality potentiometers sealed , original TPA3116D2 chip , SMD chip devices , and so on .
- Board circuit is simple , reliable work.  Compact board , use and installation are very flexible and convenient.
- All use genuine components using devices capable of long-term stability.
- You can use desktop power supply, it is also very suitable for battery -powered devices , such as motorcycles, cars , electric cars , and so on .
- Main filter capacitor is 4700uf 35v, but for the power amplification chip's limitation, this amplifier can accept just 12-24v DC power supply, the capacitor will work in a good condition.
- The left and right channel full-range, with 24v output voltage power can drive 3-16 ohm speakers , a very wide range
- The subwoofer channel with 24v standard voltage power can drive 2-16 ohm subwoofer , unique
- Bass cutoff frequency independent regulation 80HZ-500HZ adjustable from front panal,
- Independently adjustable subwoofer gain
- Preampfication part use two NE5532DD OP-amp , can giving a HIFI quality sound

Kknobs in front panal:
- The left is the stereo volume control(just for left and right channels adjustment)
- The middle is Subwoofer volume control
- Right is global volume control(for 3 channels adjustment)

- Operating voltage 12V-24V.(recommande about 20v laptop power adapter)
Left and right channel output 50WX2(max),
subwoofer output 100w(max), efficiency can reach above 90%
- Dimensions: height 35mm width 90mm length 108 mm
- all-aluminum enclosuremidrange tweeter weak and no way to adjust the most complete digital amplifier board 2.1
