|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$18.95||$18.57||$17.99||$17.21||Contact US|

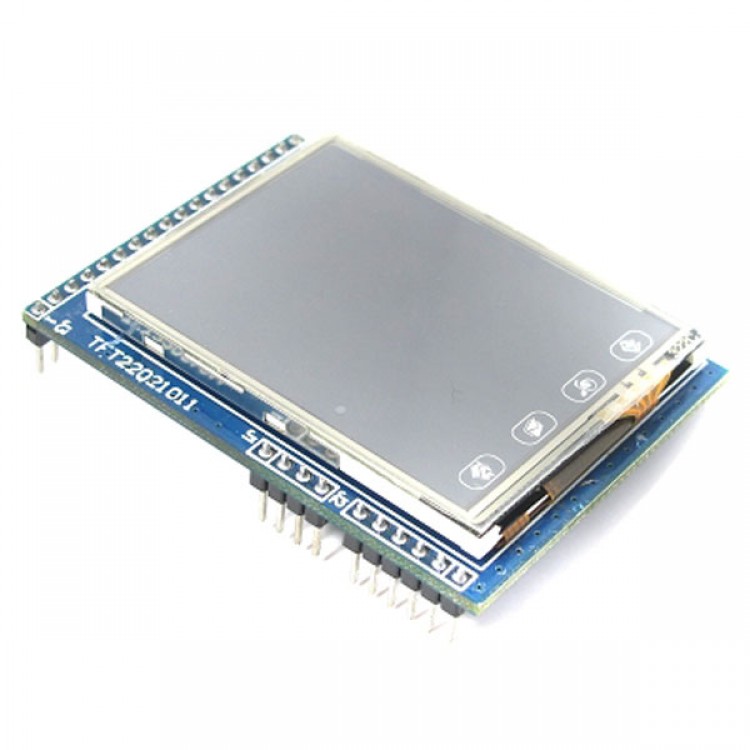

2.2" TFT LCD Screen Module HY-220TFT w/ SD Card & Touch Screen
HY-220TFT module is a 2.2" TFT LCD module with SD card and touch screen. 176 x 220 resolution with 256K colors.
The LCD has a wide viewing angle , the contrast is also very suitable. The Screen use the HX8340 controller, it’s 8bit data interface , easy to drive by many MCU like STM32 ,AVR and 8051.
HY-220TFT is designed with a touch controller in it . The touch IC is TSC_2046. HY-220TFT with a SD card slot for storge function expansion.
This module is NOT compatible with ITDB02 Arduino shield and ITDB02 Arduino MEGA shield.
Schematic of HY-220TFT
Specification of HY-220TFT
Datasheet of HX8340
Datahseet of TSC2046
Hand Writting DEMO (8051)
Arduino Dispaly DEMO (AVR)
SD Read and Display DEMO (8051)
Image Dispaly DEMO (8051)
