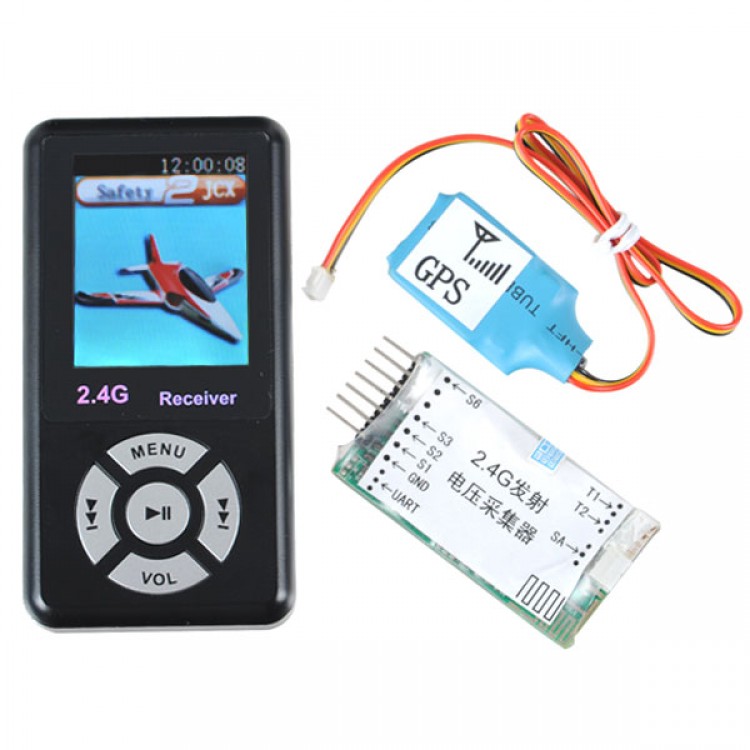

2.4G Transmitter Receiver Telemetry System GPS Speed Height Voltage Tempeture Monitor for RC Copter
Features:
- 2.4G real time collect the data for transmission, transmission distance is 300 meters.
- Real time collect, store, analysis and broadcast the aircraft battery voltage.
- 2-channel temperature sensor, give voice alarm when it is beyond the safe temperature you set,the temperature alarm can be setted again.
- Discharging current sensor, sensor resistance is 0.002 ohms, testing current > 50A.
- Infrared photoelectric speed sensor, the maximum testing range is 60000 RPM.
- Tracking and searching the loss airplane, searching range > 80 meters.
- Testing the speed of motors and KV value.
- Testing the airplane battery discharging characteristic, internal resistance, C value and discharge current.
- Store and analysis the airplane battery discharging voltage, current and temperature curve data
- Take the battery discharging quantity statistics.
2.4G GPS Receiver Specs:
- Position accuracy < 3m
- Short starting time < 1.5s ( hot-start ), < 34S ( mid-start ), < 35S ( cool-start )
- Low power consumption
- GPS chip : the ninth generation single chip
- Satellite channels:88 channels (66 catching channels,22 tracking channels)
- Frequency:L1,1.57542 GHz, C / A code
- Start time: < 1.5s ( hot-start ), < 34S (mid-start), < 35S (cool-start)
- Power: consumption: 38mW typical@tracking
- GPS precision: < 2.5m Position Accuracy;0.05m / sec Velocity Accuracy
- Signal sensitivity: -164dBm ( Tracking )
- Recollection time: < 1s
- Size：85mmx45mmx15mm
- Weight: 45g(includes battery)
Transmitter Voltage Catching Specifications:
- Voltage testing accuracy: 0.01V, error<0.5%
- Size: 48mmx25mmx4mm
- Weight: 5g
GPS sensor Specs:
- Size:30MM*20MM*6MM
- Cable length:300MM
- Weight:6g
Infrared photoelectric speed sensor Specs:
- Testing accuracy error: <0.2%
- Size: 35mmx15mmx5mm
- Cable length: 300mm
- Weight: 3g
2-channel temperature sensor Specs:
- Temperature testing accuracy:1℃, error<1.5%
- Size: 10mmx6mmx4mm
- Cable length: 300mm
- Weight: 1.6g
