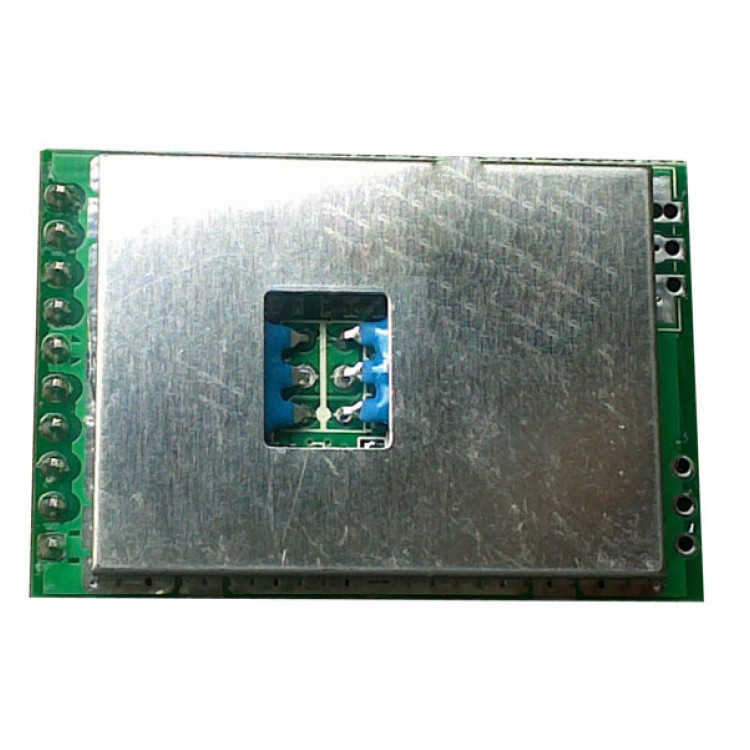

2.4G Wireless Audio Video Module Wireless Receiving Module RX6788 for FPV Telemetry RX
Description:
- RX6788 is FM audio and video receiving demodulation module working under 2414-2468MHz ISM band.
- Adopting singlechip design, this chip integrates VCO, PLL, wide band FM video demodulation, FM sound demodulation, making this module small volume low consumption high sensitivity
- Adopting STM or plug-in package, convenient for users to install
- Only need to connect to power supply, single/ dual audio line, video line, and antenna, then it can receive music and images signal
Specification:
- Brand: rfav
- Model: TX6788
- Working frequency: 2.4GHz
- 2 Group frequency 8 channel optional, can easily avoid interference frequency:
Ch1 2414/2490MHz Ch2 2432/2510MHz
Ch32450/2390MHz Ch4 2468/2370MHz
- Modulation system: FM Broadband frequency modulation
- Working sensitivity: -93dBm
- Working voltage: 5V
- Current consumption: 150mA
- Dimension: 45mm*30mm*4.8mm
- Communication distance: 100-200
- Build in phase locked loop frequency, high stablization
- Direct output audio, video signal
- STM installation, convenient for users to use
