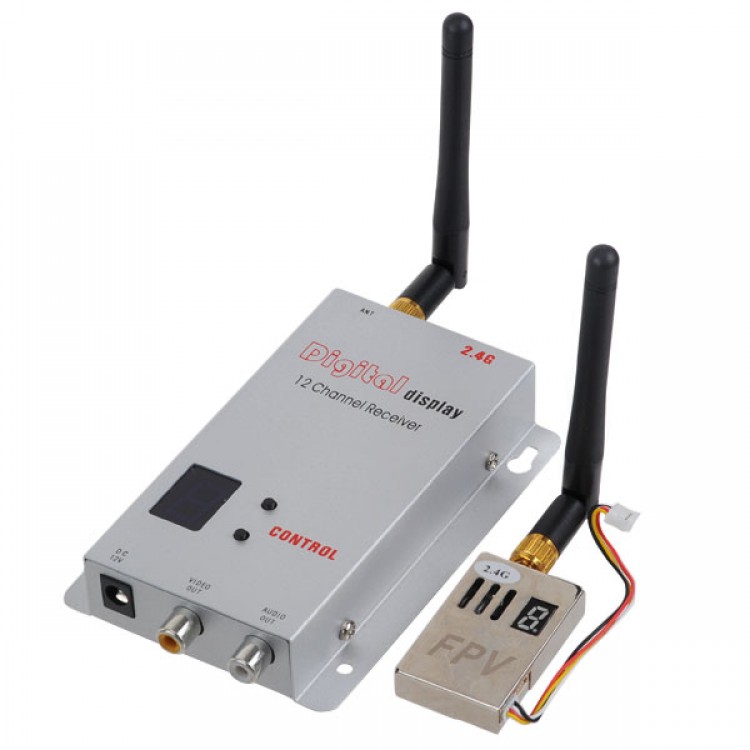

2.4GHz 12CH 4 Ways 100mW Wireless AV Transmitter(BL-601T) Receiver System

2.4GHz 12CH 4 Ways 100mW Wireless AV Transmitter(BL-601T) Receiver System
Description
2.4G 12CH 4 Ways 100mW Wireless AV Transmitter perfect shape,transmission range is 200m in open fields.
2.4GHz 12CH 4 Ways 100mW Wireless AV Transmitter(BL-601T)
- Feature: Cabinet bulk,perfect shape,credibility,use for near distance AV transmitting.

- Performance Parameter:
- Working Voltage:DC 12V
- Output Current: 100mA
- Output Power:100mW
- Transmitting Range:200m in open fields
- Video Output:1Vp-p(FM)
- Audio Output:1Vp-p(FM)
- Audio carrier ware:5.5M  6.0M

- Working Frequency:
- 2.410G  2.430G  2.450G  2.470G  2.490G  2.510G  2.390G  2.370G  2.350G  2.330G  2.310G  2.290G  (it can be OEM)

Installation:
- The line has 5 plugs for connecting transmitter,camera and power supply.One of the line's points connecting to  transmitter,another has 4 plugs(red,yellow,white,black).Red plug connect DC 12V/1000mA,can also connect battery.White and yellow plug connect to camera's audio and video apart.And black one connects camera's power input jack.
- Push the CONTROL button,can change teh channel of receiver.Meanwhile,push it and last several seconds,can colse the digital play and turn into saving power model.Then push it again,can replay.The function can be able to lock channel,so as to avoid mistaking operation.
- C.Set the same channel with transmitter and receiver.

Package Including:
- Transmitter, one  pcs of small antenna, TX cable
