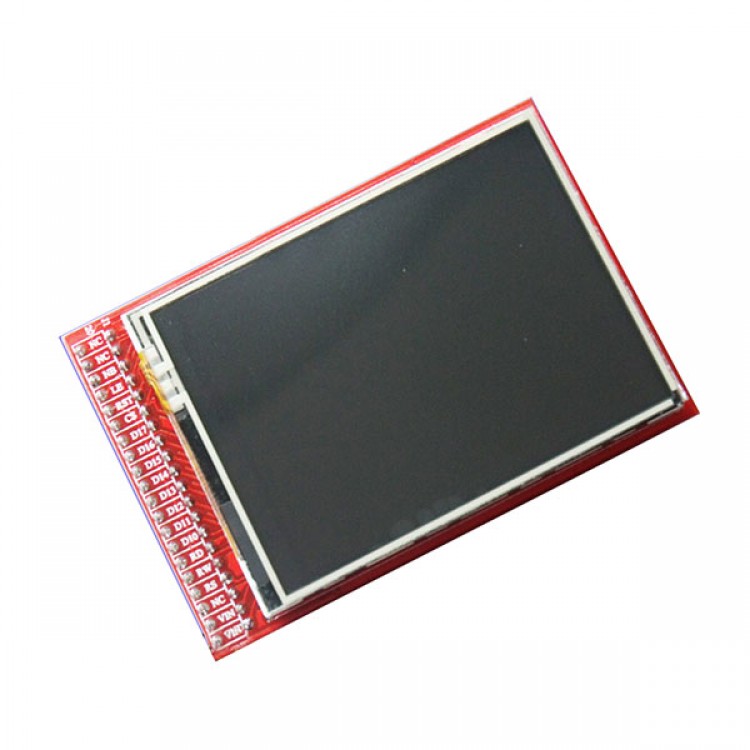

2.8 inch TFT Color LCD Touch Screen 320 x240 SD Slot Dot Matrix LCD Screen12864 Interface Compatible
Specification:
- Size: 2.8'inch
- resolution: 240x320
- Module size:8.07cmX5.43cm
- Display size:5.9cmX4.6cm
- Driver chip:ILI9320
- Interface type: 8 parallel port, 12864 interface, compatible with touch and SD booth
- Display pin: GND,VCC,NC,RS,RW,RD,D0-D7,CS,RST,LE,NC,NC,NC
- Pin description: in turn from right to left is 1 to 20, NC is empty, specific to see a larger image or manual
