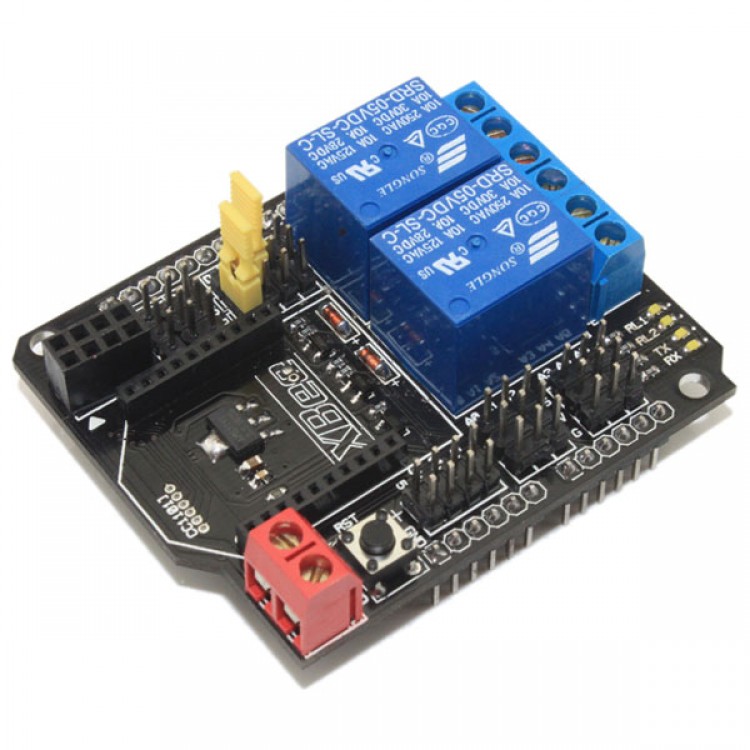

2 Channel Relay Shield for Arduino Compatible With XBee/BTBee Interface


The Relay shield is capable of controlling 2 relays. The max switching power could be 10A/250VAC or 10A/30VDC. It could be directly controlled by Arduino/Freaduino through digital IOs with external 9v supply. With buildin xbee/BTBee type socket, it can be wirelessly controlled via Xbee/BTBee(HC-06). Make it an ideal solution for home automation and robotics purpose.

Specifications:
- 2 channel Relay
- With XBBee/BTBee, CC1101 and nRF24L01 wireless interface
- Wiht 6 sensor and 3 servo interface
- Contact Rating 10A AC 250V / DC 30V
- Max Switching Voltage AC 250V / DC 30V
- Max Switching Current 10A
- Electrical Life (Min) 100,000 Operations
- Mechanical Life (Min) 10,000,000 Operations
- Safety Standard(relay) UL cUL TUV CQC
- Coil Working Voltage 5VDC


Documents:
Schematic
