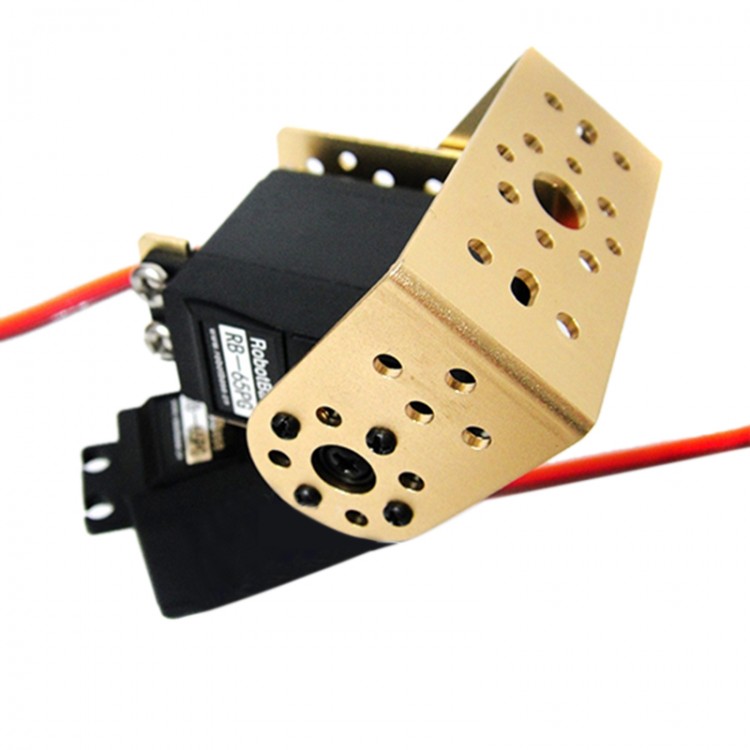

2-DOF RB-65PG Pan and Tilt Kit with Aluminum Golden Type U Servo Bracket Robot Joint for Arduino

2-DOF RB-65PG Pan and Tilt Kit with Aluminum Golden Type U Servo Bracket Robot Joint for Arduino

Description:
2-DOF RB-65PG pan and tilt kit is a cost-effective, positioning-precise and lightweight kit which can be used both inside and outside. It features moving vertically and horizontally. Not only can the attached camera record images, but recognize images and implement positioning tracking. With an IR sensor or Ultrasonic sensor, it forms an all-in-one detecting device to be able to sense the change of ambient surroundings by which the robot can detect and avoid obstacles. By the Arduino controller, a color searchlight can also be added to complete a new work.


Specifications:
1.Control System:+Pulse Width Control 1500usec Neutral
2.Operating Voltage:4.8-7.2 Volts
3.Operating Temperature Range:0 to +60 Degree C
4.Operating Speed (4.8V):0.14sec/60°at no load
5.Operating Speed (6.0V):0.12sec/60°at no load
6.Stall Torque:5.5kg·cm (4.8V);6kg·cm(6.0V);6.5kg·cm (7.2V);
7.Dead Band Width:10usec
8.Connector Wire Length:300mm
9. Weight: 60g
10. Size: 40.8mmx20.1mmx38mm
11. Color: Gold

Attention! Servo connection: Red (+), Brown (-), Yellow (signal)

Package Included:
- 2 x RB-65PG Servo Motor
- 1 x Alluminium Alloy Multi-Purpose Servo Bracket (Silver)
- 1 x Aluminum Offset Servo Bracket (Gold)
- 1 x Bearing
- 1 x Bearing Spring Washer and Screw
- 1 x Screw and Nut Kit
