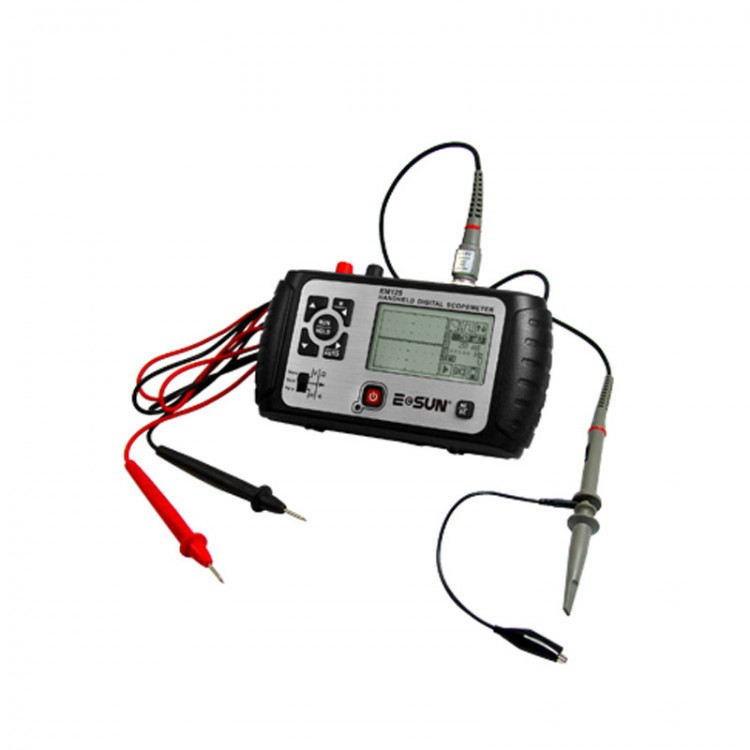

2-In-1 Professional 25MHZ Pocket Handheld Digital Oscilloscope Scopemeter + Multimeter

Availability: In stock, usually dispatched in 1 business day

  • Price:$102.85
  • Price in reward points: 1029 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $100.79 $98.74 $95.65 $91.54 Contact US
Quantity:

2-In-1 Professional 25MHZ Pocket Handheld Digital Oscilloscope Scopemeter + Multimeter

Specification of scopemeter:
- Bandwidth(-3dB): 25MHz
- Sample: Max  sample:100MSa/S
- Channel: 1
- Couple: AC, DC
- Rising time: < 17.5 nS
- Input independence:  1MΩ,≤20pF
- Max input voltage: 1x  CAT III 300 VAC 10x, 100x CAT III 600 VAC
- Vertical resolution:  8bit
- Vertical sensitive:  50mV/div-20V/div
- Horizontal resolution:  10nS/div
- Horizontal sensitive:  10nS/div -5S/div
- Depth-sampling:  0.1K/Channel
- Trigger mode: AUTO,  Rising edge, falling edge

Fundmental specification:
- Screen size:  128(horizontal)×64(vertical);backlight:LED
- Battery: 3.7V Lithium  battery 1200mAH
- Charger:  Input:100VAC-240VAC
- Output:5V±10%DC 1000mA
- Size: 174*92*40mm
- Wheight: 330g(host  machine)

Specification of multimeter:
- Measure count: 6000
- Input: Max input  voltage:600 Vrms CAT II, 300 Vrms CAT III
- On resistance: 25Ω(at  the range of 600Ω), if less it beep
- Diode measure: >2V  shows OL(overload) <0.25 beep
- Capacity measure:  6.000nF- 6mF 7range
- Resistance measure:  600.0Ω- 60.00MΩ 6range
- Voltage measure: 6V-  600V 3 range

Specification:
- Voltage:
- DC Voltage:6.000 V:0.5 ±8
- 60.00 V:0.5 ±8
- 600.0 V:0.5 ±8
- AC Voltage:6.000 V – 600.0 V:40 Hz – 400Hz:1.0 ±10
- 400Hz – 2 kHz:3.0 ±10
- AC+DC Voltage:6.000 V – 600.0 V:40 Hz – 400Hz:1.0 ±10
- 400Hz – 2 kHz:3.0 ±10

Resistance:
    600.0Ω     1.0 ±5
    6.000 KΩ     1.0 ±5
    60.00 kΩ     1.0 ±5
    600.0 kΩ     1.0 ±5
    6.000 MΩ     1.0 ±5
    60.00 MΩ     2.0 ±5
    Capacitance:
    6.000 nF     3.0 ±8
    60.00 nF     3.0 ±8
    600.0 nF     3.0 ±8
    6000 nF     3.0 ±8
    60.00 uF     3.0 ±8
    600.0 uF     3.0 ±8
    6.000 mF     3.0 ±8

Note:
1.Your valid phone number is  very necessary for the shipping, otherwise we can't guarantee that  the package would safely arrives.
2. Any Customs tax applied to this package should be covered by  buyers.

Package List:
- 1 x  25MHZ Pocket Handheld Digital  Oscilloscope Scopemeter
- 2 x  Tester Cable
- 1 x  Bag
