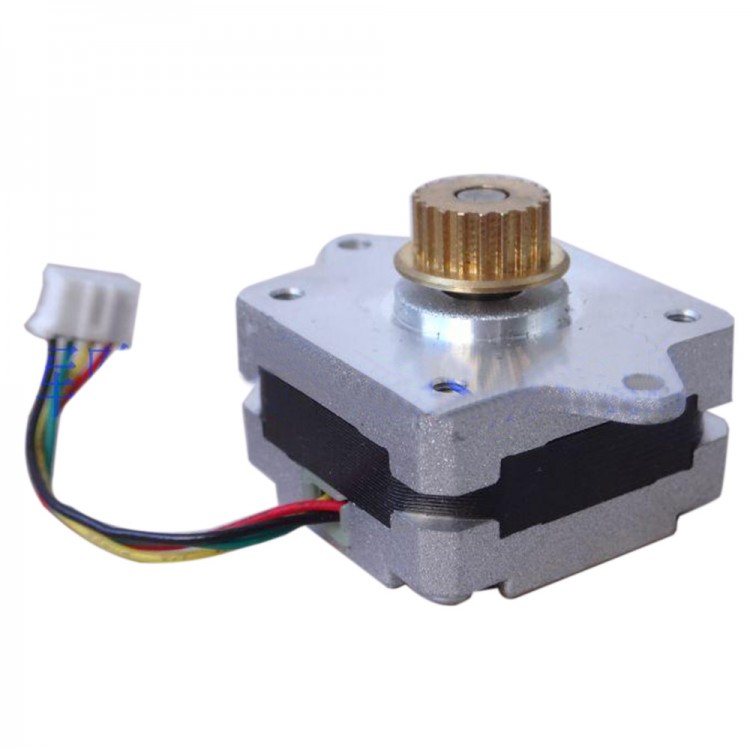

2 Phase 4 TVL Hybrid Stepper Motor 35 Stepping Motor Thickness 20mm 35H20HM-0304A6 for DIY CNC
Specification:
- Model: 35H20HM-0304A6
- Size: 35mm*35mm*20mm (without shaft length )
- Motor mounting screw hole pitch: 26mm or so
- "Ear" hole distance on both sides: 43mm
- Shaft length: 10mm
- Shaft diameter: 5mm
- Sync wheel type: MXL (this sync wheel is single direction)
- Synchronous gear tooth number: 20 teeth
- Synchronous wheel material: Brass
- Lead cable length: 60mm
- The width of the belt groove of the synchronous wheel: 5.5.mm (the belt pulley is not with the stop)
- DC resistance of each phase coil: 27 ohm
Package included:
- 1 x Stepping Motor
