2 Phase 4 TVL Hybrid Stepper Motor 57 Stepping Motor 40mm 1.8 Degree 57H76H-1004A36 for DIY CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$22.92
  • Price in reward points: 229 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.46 $22.00 $21.32 $20.40 Contact US
Quantity:

2 Phase 4 TVL Hybrid Stepper Motor 57 Stepping Motor 40mm 1.8 Degree 57H76H-1004A36 for DIY CNC

Description:

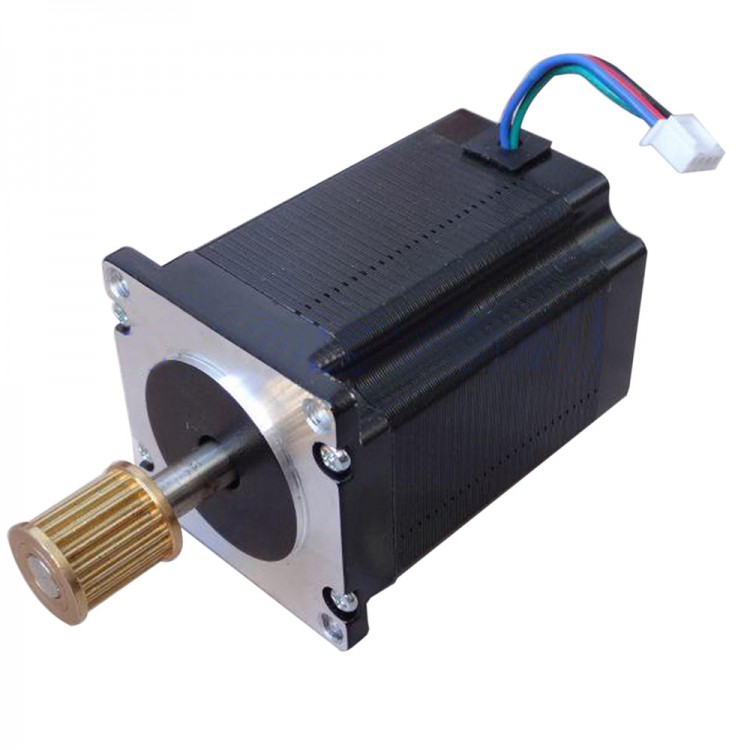

High quality and 2 phase 4 TVL 57 stepper motor, large torque. Length is 76mm, with brass synchronous belt wheel.
Ball bearings, rotor center is a multi segment nd! High precision, low noise, smooth operation, high temperature resistance.

Specification:
- Model:  57H76H-1004A36
- Motor size: 57*57*76MM (length without shaft)
- Shaft length 35mm
- Axis dia.: 8mm
- Installing screw hole pitch: 47mm or so
- Screw hole size: 5mm
- Lead length: 60mm
- Phase coil resistance: 18 ohms (a high torque motor)
- Synchronous belt pulley with brass
- Synchronous gear tooth number: 18teeth
- Tooth space: 3mm
- Synchronous wheel belt width: 16mm
- DC resistance of each phase coil: 13 ohm

Package included:
- 1 x Stepping Motor
