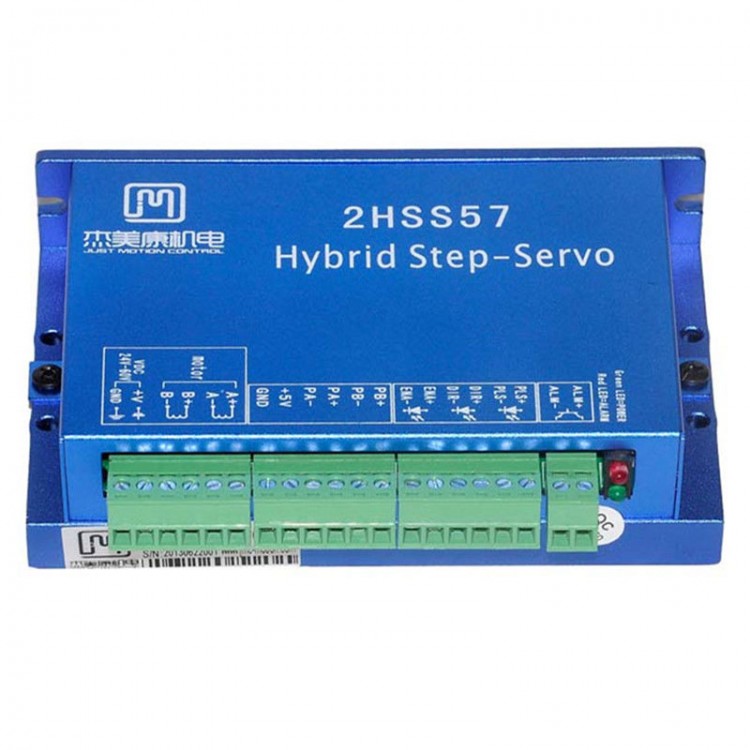

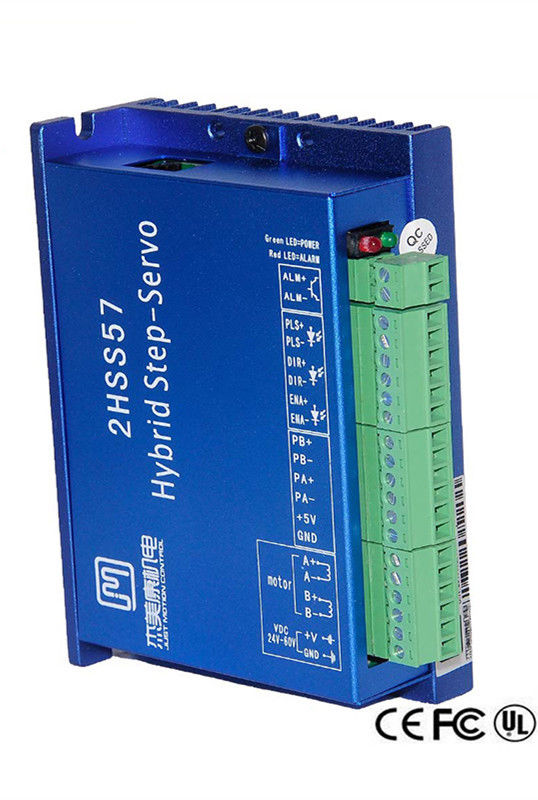

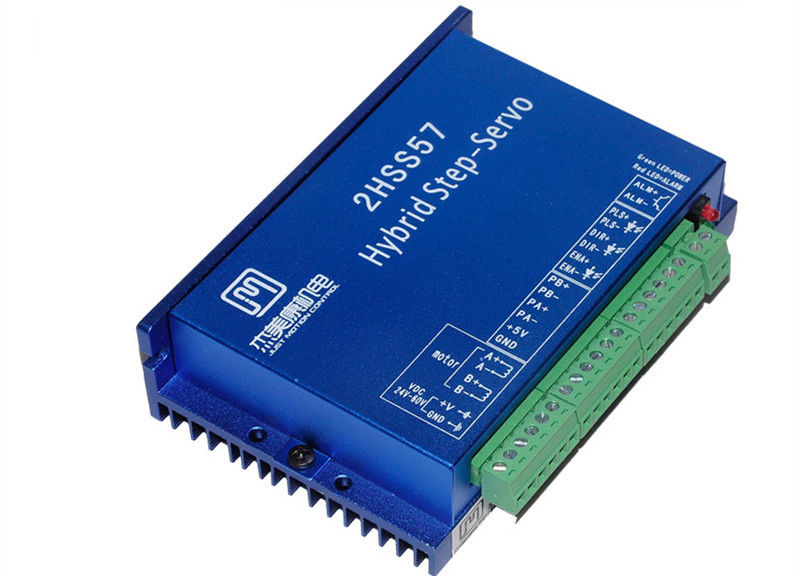

2 Phase Closed Loop Hybrid Step Servo Driver for NEMA23 Motor 24V-48V 6A 2HSS57

2 Phase Closed Loop Hybrid Step Servo Driver for NEMA23 Motor 24V-48V 6A 2HSS57

Introduction:2HSS57 two-phase hybrid stepper servo drive system integrated servo control technology into the digital step driver. It adopts typical tricyclic control method which include current loop,speed loop and position loop.This product has the advantage of both step and servo system, and it’s a highly cost-effective motion control products.

Product Specification:
- Full closed loop control
- For Motor with standard 1000 line encoder
- It save energy and achieve nearly 100% output torque .

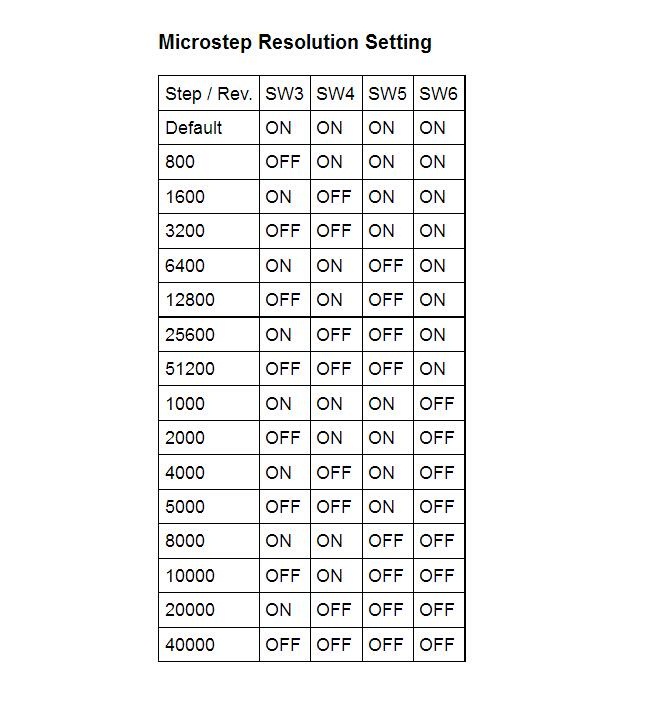

- Micro step setting range is 2-256
- High speed response, High speed
- Optical isolation servo reset input interface ERC
- Current loop bandwidth: (-3dB) 2KHz (typical value)
- Speed loop bandwidth: 500Hz (typical value)
- Position loop bandwidth: 200Hz (typical value)
- Motor encoder input interface: differential input (26LS32)
- RS232 serial communication available to download or change the parameters

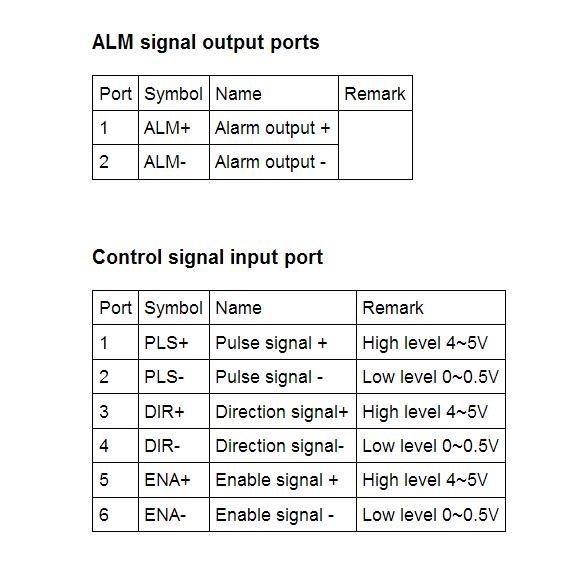

- Optical isolation fault  alarm output interface ALM
- Over current, I2T, over voltage, under voltage,temperature, speeding, over-differential protection
- Alarm clear input ENA
- Current:0-6A
- Voltage:DC 24-48V
- Adaptive motor:57.86
- Weight:0.27kg

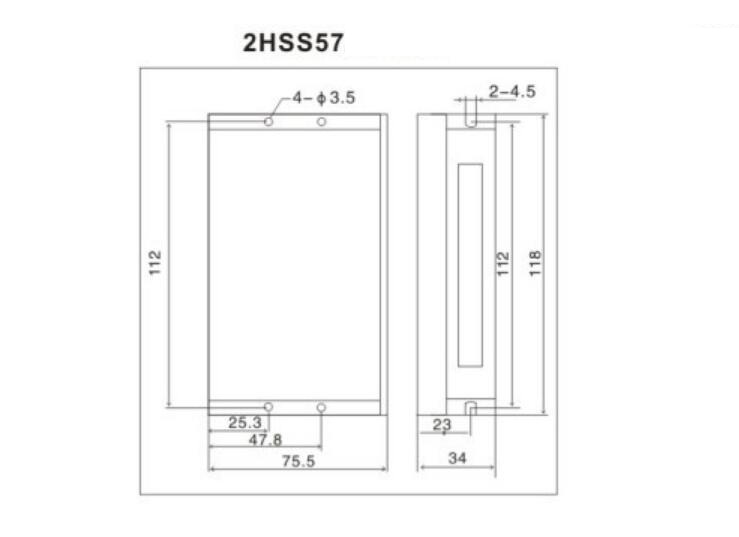

- Dimension:118x75.5x34mm
- Control signal:differential signal

Typical applications:CNC machine ,cutting machine ,engraving machine

Package List:
- 1 x Hybrid Step Servo
- 1 x Instructions
- 1 x Communication cable
