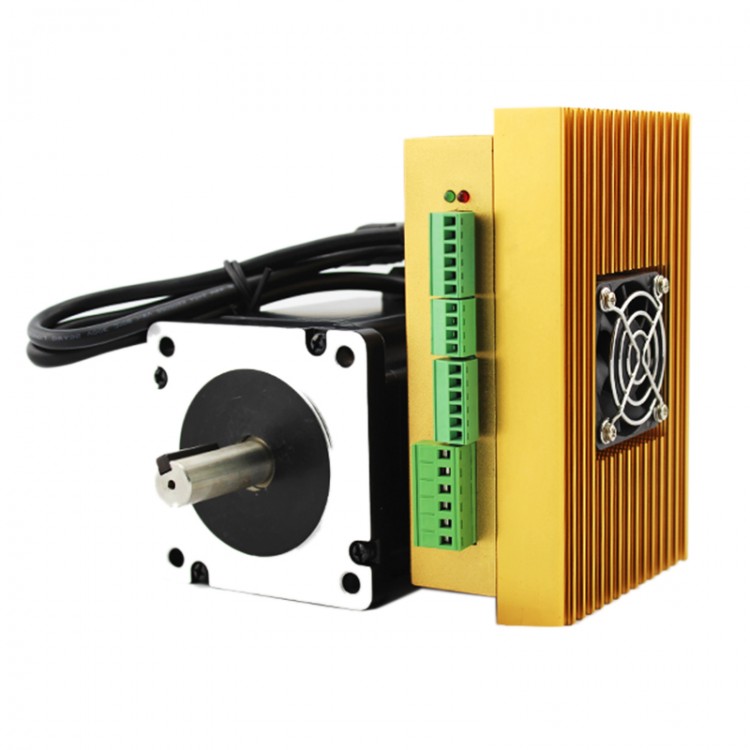

2 Phases 86 DSP Closed-Loop Step Motor Drive Kit 20-70VAC/30~100VDC 7.5A 12NM NEMA34 86mm Laser Machine LC86H2160+LCDA86H
Motor Specifications:
Product Name: 2 phases 86 closed loop stepper motor
External Diameter: 86mm * 86mm
Highest speed: 1200 rolls/min
Motor Length: 90mm~190mm(encoder contained)
No. of encoder: 1000
Holding Torque: 3 N.M~12 N.M
Diameter of Axle: 14 mm
Weight: 2.0 kg~5.4 kg
Matchable Driver: LCDA86H
Model: LCDA86H
- Drive voltage: 20-70VAC / 30-100 VDC
- Drive current: max 6 A
- Subdivision range: 2-256
- Signal voltage: 5V,currentlimiting resistance will be added when input 12 or 24V
- Pulse frequency: 200 khz / 500 khz
- Alarm output: support
- Signal input: pulse / direction and enable signal
Model: LC86H2160
- Ph: 2
- Phase current(A): 7.5
- Phase Resistance(Ω): 0.5
- Phase inductance(mH): 6.3
- Holding torque (N.m): 12
- Rotational inertia (g.m2): 5.4
- Motor Length(mm): 160+30
- Weight (Kg): 5.4
- Encoder (PPR): 1000
Package Included:
- 1 x 2 Phases 86 DSP Closed-Loop Step Motor Drive Kit
