| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $289.69 | $283.78 | $274.91 | $263.08 | Contact US |

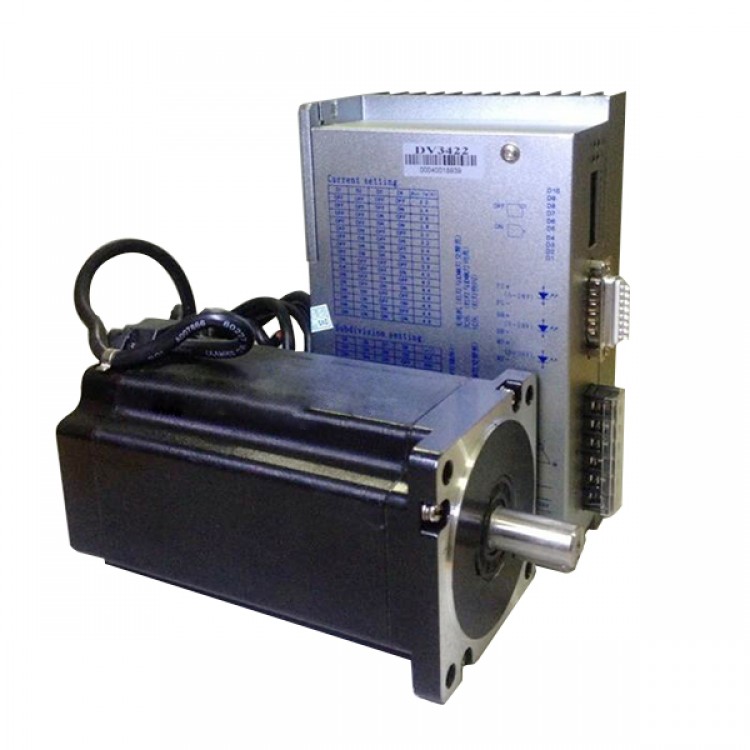

220V High Voltage 3 Phase 86 Stepping Motor Combo 86BYG350D Torque 12N.M Driver DV3422
Motor description:
- Type: 86*86
- Motor body length: 155mm
- Shaft diameter: 14mm
- Torque: 12 N.m
- Key slot: 5*5*25
- Working voltage: 220V
- The largest rotate speed: 1200rpm
- Rated rotate speed: 1000rpm
Stepping motor driver features:
- 16 levels of angle torque subdivision, the highest definitionn 60000 steps/round
- The highest response frequency can reach 200Kpps
- When stepping impulse stops for over 1.5s, coil current will reduce to the half of the setting current automatically
- Photoelectric isolation signal input/output DC5-28 v within the scope of freedom of choice
- Driver current 2.2 phase to 4.8 phase, 16 levels adjustable
- Single power supply input, voltage range: AC90-230V
- Phase positoning memory function
Package list:
- Stepping Motor x 1
- Driver 12N.M x 1
