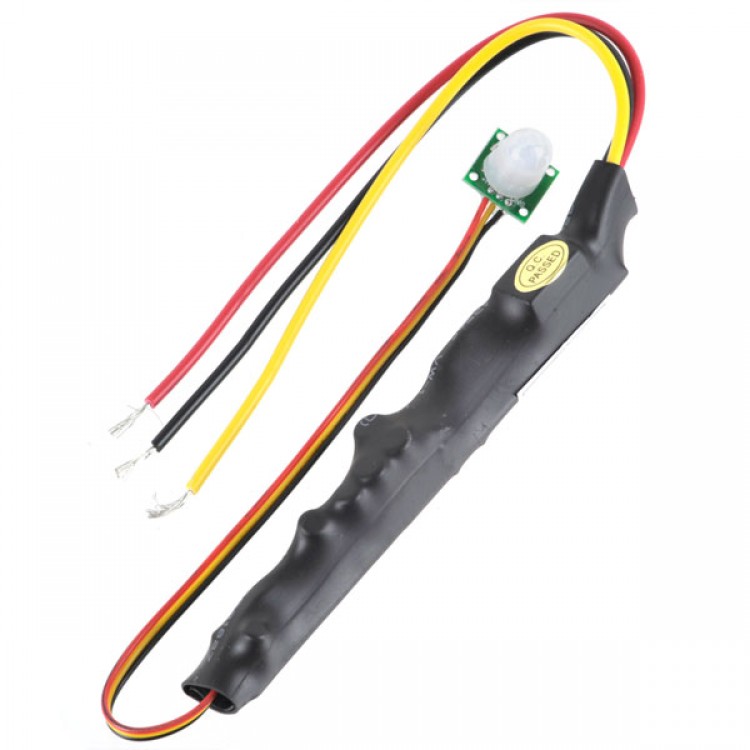

220V Infrared Sensor Module 5A Motion Sensor Module
Application:
- Infrared sensor module-Widely used on the Motion-activated lighting,
- Security System, automatic sensory device and more.

Specifications



Model No

748

Description

Passive Infrared Sensor Modules

Operating voltage

220V    0V if not working

Static power loss

≤ 50 uA

Delay time

Default setting 10sec(0.5~600 Secs is optional)

Detecting range

≤110 degrees cone angle, ≤3~7M (0~7M is optional)

Triggers the way

continuous triggering, discontinuous triggering.(jumper)

Blockade time

5s-60s adjustable(default setting: 0 seconds)

Output type

high / low level ,open collector is optional

light sensor

Depend on customer requirement

PCB Dimension

120mm

Lens dimension

12.7mm
