24BIT/192k WM8805+AD1955+PCM2706 Coaxial Fiber Optic USB DAC Board (Upgrade Version)
  • 24BIT/192k WM8805+AD1955+PCM2706 Coaxial Fiber Optic USB DAC Board (Upgrade Version)
  • 24BIT/192k WM8805+AD1955+PCM2706 Coaxial Fiber Optic USB DAC Board (Upgrade Version)

  • SKU:25527
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 5
  • Price:$51.90
  • Price in reward points: 519
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $50.86 $49.82 $48.27 $46.19 Contact US

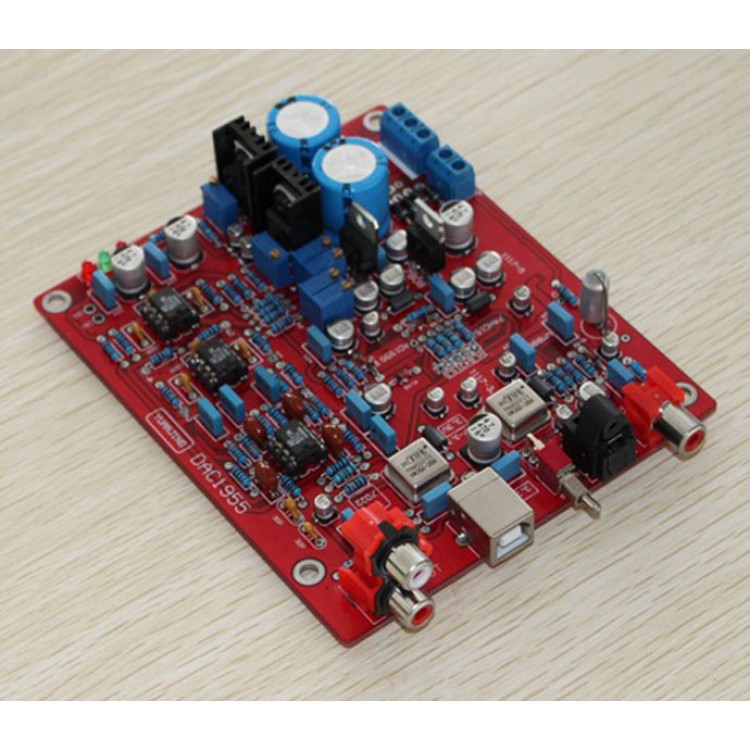

24BIT/192k WM8805+AD1955+PCM2706 Coaxial Fiber Optic USB DAC Board (Upgrade Version)

Specifications:

- Original AD1955+WM8805+PCM2706+AD827
- Famous band for main circuit of electrolytic capacitor signal,The main filter capacitor using BC electrolytic capacitor capacity , 2 * 2200UF
- Five ring metal resistor, main circuit resistor accuracy -+1%
- PCB thickness is 1.6mm ,copper thickness is 2.0Oz
- The two regulators besides LM317/LM337 supply -+12v power to OPO AMP
- The 4* adjustable resistors besides the BC capacitor is for zero to the PIN 1 and pin 7 of 2*I/V OP AMP

Parameters:
- Voltage: Double 15V-0-15V  10W (or double 12V-0-12V)
- Size: 128*107mm

Adjust operation:
1. Remove all AD827
2. Adjust the 503 resistor in the front of the LM317 LM337 regulator ,adjust the power supply, pin 4 and pin 8 AD827 (voltage + -12V),
3. Plug in AD827,  zero adjustment, by adjusting the 503 resistors next to the LM317, until the board label 1 and 7 volts to zero or close to zero .
