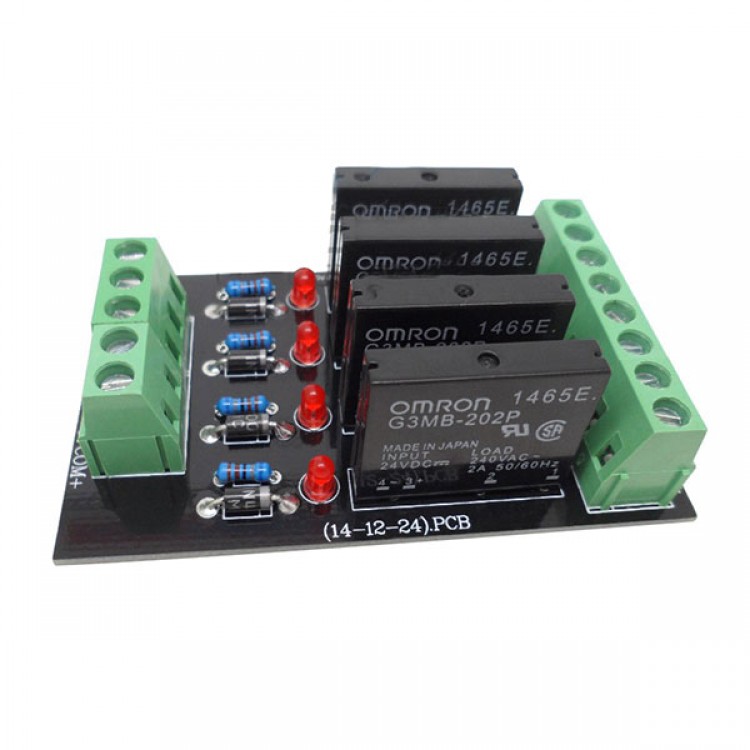

24V NPN No shell Solid 4 Channel Relay Module Control Board Drive Board Module Group
Description:
- Size: 72*25*22mm
- Output signal indication
- Can directly connect with single chip output port
- Adopting high quality relay, long using life
- Has diode continous current protection
- Responding time is less than 20ms
- Relay can continously actuate for 100,000 times
- External connecting cable adopts rotary pressure terminal, making connection more stable
- With fixed mounting holes
Parameters:
- No shell
- Input signal: NPN
- Coil voltage: DC 24V
- Rated current: 2A
