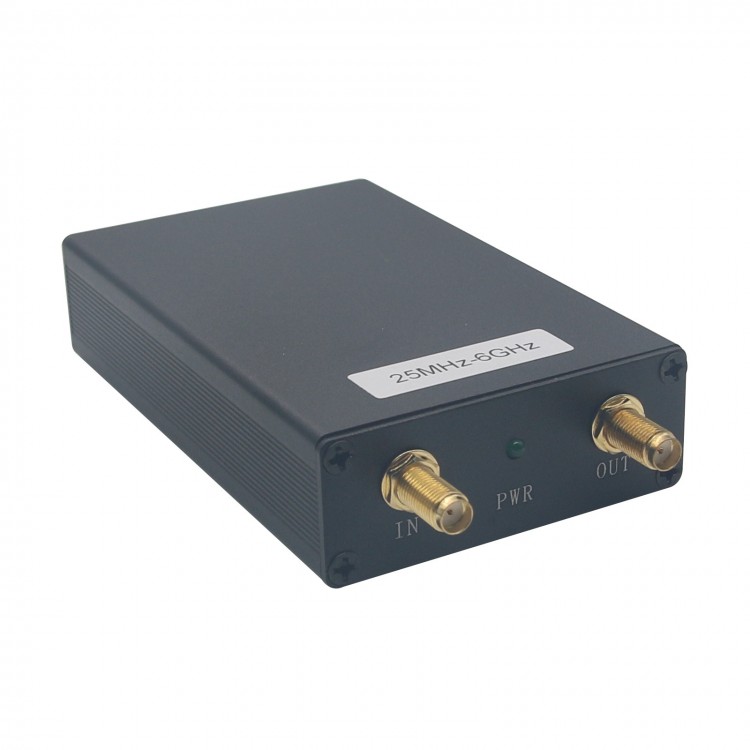

25M-6G Signal Source Signal Generator Analyzer SG SA Simple Spectrum USB Interface

Availability: In stock, usually dispatched in 1 business day

  • Price:$116.95
  • Price in reward points: 1170 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $114.61 $112.27 $108.76 $104.09 Contact US
Quantity:

25M-6G Signal Source Signal Generator Analyzer SG SA Simple Spectrum USB Interface

Application manual: Click here

Specification:
- 138M-4.4G signal source, signal generator, simple frequency spectrum, can connect external tracking source
- Output frequency range 25MHz-6GHz,
- Step: 3G-6G/5K, 1.5G-3G/2.5K, 0.75G-1.5G/1.25K, 25M-750M/0.625K
- Output power (for reference): -3.2DBM 250M; -3.4DBM 500M, 150M, -3.4DBM; -2.8DBM 1000M, -3.4DBM 750M;
  -3.6DBM 1500M; -4.0DBM 2000M; -2.8DBM 2500M; -1.8DBM 3500M; -3.6DBM 3000M
- Spectrum input frequency range 25M-6GHz
- Frequency accuracy (after calibration):+-1k@1GHz
- Input signal amplitude low noise: -70DBM@0.5G
- Power supply: USB2.0, USB3.0 (+5V/0.3A, best able to connect USB3.0)
- Interface: USB2.0, USB3.0, SMA

Package List:
- 1 x Signal Generator
- 1 x CD
- 1 x USB line
- 2 x SMA line
