2A SX1308 Adjustable Booster Module 5-Pack
Description:
SX1308 booster module is with SX1308 chip.it is smalland high- efficiency.The output power can be adjusted.The maximum coltage can be 28V,and its interior part integrates the lowest RDS internal resistance 100mohm metal oxide semiconductor field effect transistor（MOSFET),which can realize large current output which is up to 2A. It is widely used in 3G network products,digitalproducts, mobile power supply ， battery power supply equipment,etc.
Function feature:
- Oscillation frequency1.2MHz,efficiency is as high as 95 ％
- Circuit has short clrcuit protectlon,overheatmg protection function
- 10k to adjust potentiometer,adjust the output voltage Technic al parameter:
- Maximum Input voltage: DC 2V-24V
- Maximum output voltage: DC 2V-28V
- Switchmg frequency: 1.2MHz
- Maxlmum current output: 2A

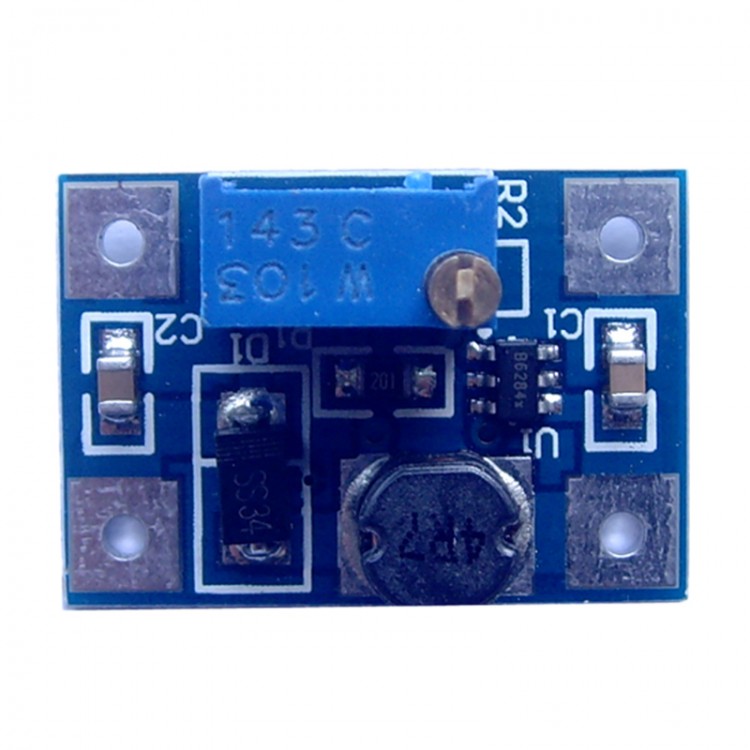

The Introduction and illustration of size ：
1.VIN is Voltage input end anode
2.GND is Voltage input end cathode
3.GND is Voltage output end cathode
4.OUT is Voltage outnput end anodetwo GND are interconnected the bonding pads of four voltage input/output end are 4mmX4mm hole diameter is 1mm.
5.10K adjusts potentiometer,by adjustmg the potentiometer choice the output voltage value.Adjustmg counterclockwise and the output voltage increase
6.SS34 Overload current protection
Package included:
5 x 2A SX1308 Adjustable Booster Module
