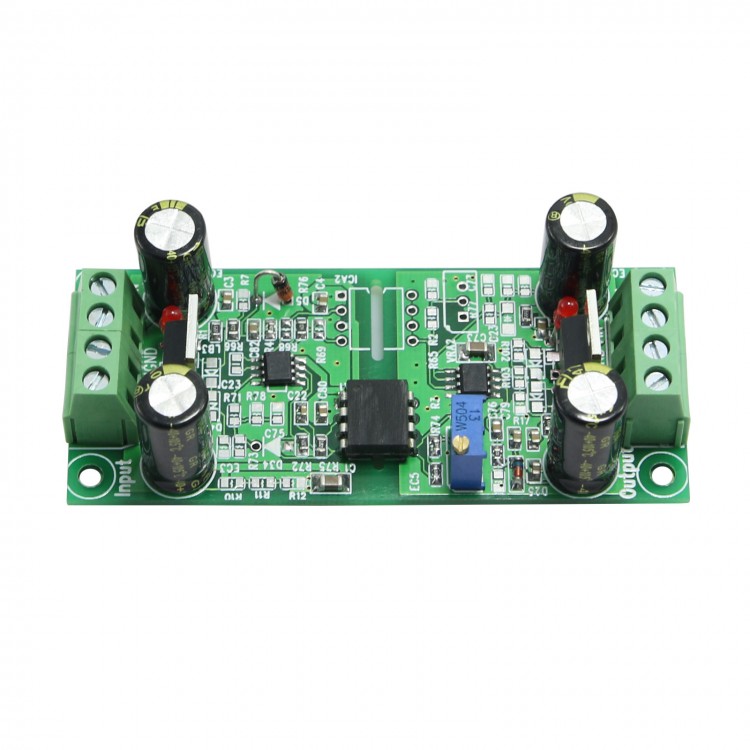

2Ch Analog Isolation Mini Current to Voltage Transmitter Module 0-5V to 0-5V Sensor

Features:

- Power: DC12-32V supply.
- Function: Input 0-5V analog voltage signal, after isolation, the output voltage of 0-5V analog signal. Conversion Accuracy ± 3%, the conversion speed ≥200MS.
- Purpose: The high-pressure or voltage or current strong interference terminal (voltage) signal isolation transmission to the PLC or controller MCU controlled side of the control terminal and isolation, in order to ensure the stability and anti-jamming capability. Metal shield box, shell under the earth, the better if the module is installed in the controller.
- Board potentiometer is used to correct correspondence between the voltage conversion.
- Each terminal has a marked edge.
- AI1: Analog input first road
- AI2: Analog Input second road
- AO1: analog output of the first path
- AO2: analog output of the second path
- GNG: 0V Power
- V +: 12-32V power
