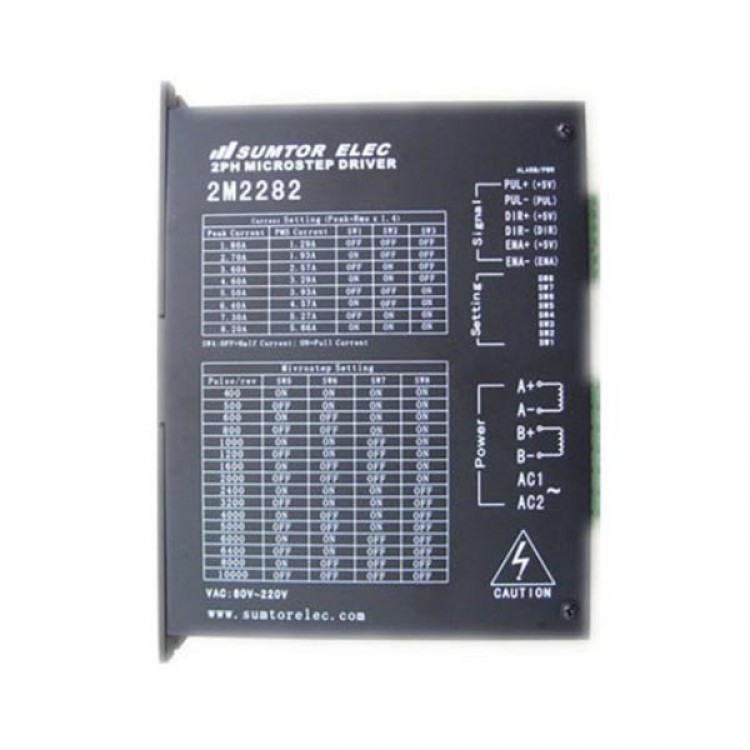

2M2282 8.2A CNC Micro-stepping Driver CNC Stepper Motor Driver Controller AC80-220V
  • 2M2282 8.2A CNC Micro-stepping Driver CNC Stepper Motor Driver Controller AC80-220V

  • SKU:26675
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 16
  • Price:$163.90
  • Price in reward points: 1639
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $160.62 $157.34 $152.43 $145.87 Contact US

2M2282 8.2A CNC Micro-stepping Driver CNC Stepper Motor Driver Controller AC80-220V



Description:
- The 2M2282 is one of the few Direct-On-Line Step Motor Drive, available in the industry, which can be simply power up from the AC power source without the need of a Power Supply. This makes it cost effective and space efficient. With a higher voltage input, this high performance bi-polar two phase micro-stepping drive is able to excite a motor size from Nema 23 up to Nema 42. It can drive 2 Phase hybrid motor, that comes in 4, 6, or 8 leads.
- With an automatic optimization speed control technique, the PowerStep series drive output is very stable, with almost zero vibration and noise, performing close to a servo system, allowing the motor to operate smoothly. That helps to fulfill a design requirement of low noise, low heat and high performance.

Features
- AC80 to 220V Supply Voltage
- H-Bridge, 2 Phase Bi-polar Micro-stepping Drive
- Suitable for 2-phase, 4, 6 and 8 leads step motors, with Nema size 23 to 42
- Output current selectable from 1.8~ 8.2A peak
- Current reduction by 50% automatically, when motor standstill mode is enabled
- Pulse Input frequency up to 200 kHz
- Optically isolated differential TTL inputs for Pulse, Direction and Enable signal inputs
- Selectable resolutions up to 10000 steps
- Over Voltage, Coil to Coil and Coil to Ground short circuit protection.

Please refer to pictures for Current Setting, Microstep Setting, P1 Pin Assignment, P2 Pin Assignment, Wiring and Dimensions.


Specifications:
Input voltage

Single Phase 80~220V input

Input current

<6A

output current

1.8A~8.2A

Power

100W/8.5A

work Temperature

10-45C

Humidity

without condensation and water droplets

Gas

Prohibition of combustible gas and conductive dust

weight

1.800kg

Setting:

SW5

on

off

on

off

on

off

on

on

off

on

on

off

on

off

on

off

SW6

on

on

off

off

on

on

off

on

on

off

off

off

on

on

off

off

SW7

on

on

on

on

off

off

off

on

on

off

on

on

off

off

off

off

SW8

on

on

on

on

on

on

on

on

off

on

off

off

off

off

off

off

Pulse/rev

400

500

600

800

1000

1200

1600

2400

3200

3200

4000

5000

6000

6400

8000

10000
