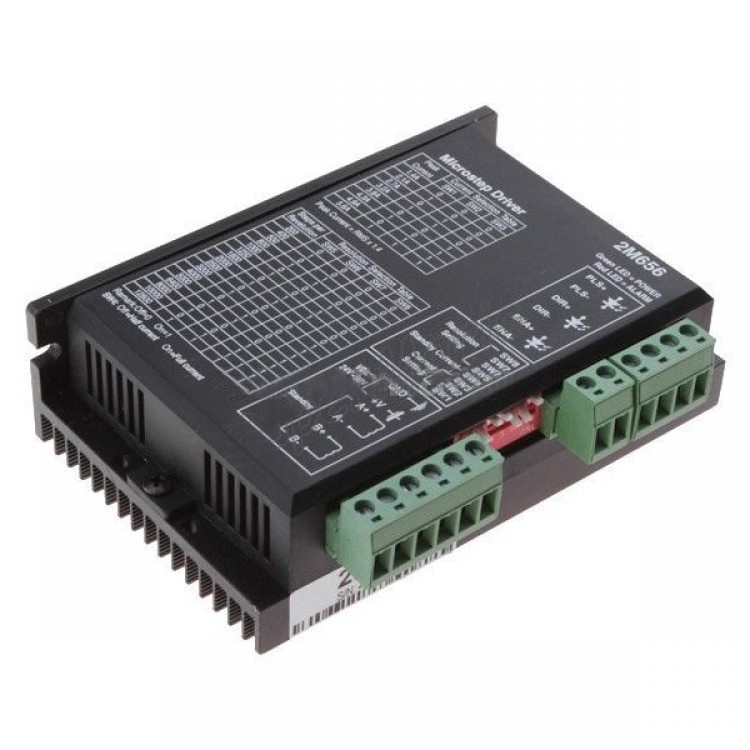

2M656 2-phase 5.6A Stepper Stepping Motor Driver for Nema 23-34 Stepper Motor & CNC Engraving Machine

Feature
- 2-Phase Stepping Motor Driver. Ideal for CNC and Laser machine. High Current, Quality made, Low noise, and affordable.
- 20 to 50V DC Supply Voltage
- H-Bridge, 2 Phase Bi-polar Micro-Stepping Drive
- Ideal for 2-phase, 4,6, and 8 leads step motors with Nema size 23 to 34
- 50% current mode
- Frequency Input support up to 200KHz
- Up to 12,800 steps resolution

Specification:
- Current: Min 1.0A, Max 4.2A
- Voltage: Min 20V Typical: 36V Max: 50V DC
- Logic current: Min 7mA Typical: 10mA Max: 16mA
- Input frequency: 0 to 200KHz


Current setting
Dip switch
Current
1
2
3
RMS
0
0
0
1.4A
1
0
0
2.1A
0
1
0
2.7A
1
1
0
3.2A
0
0
1
3.8A
1
0
1
4.3A
0
1
1
4.9A
1
1
1
5.6A




Package list:
- 1 x 2M656 2-phase 5.6A Stepper Stepping Motor Driver
