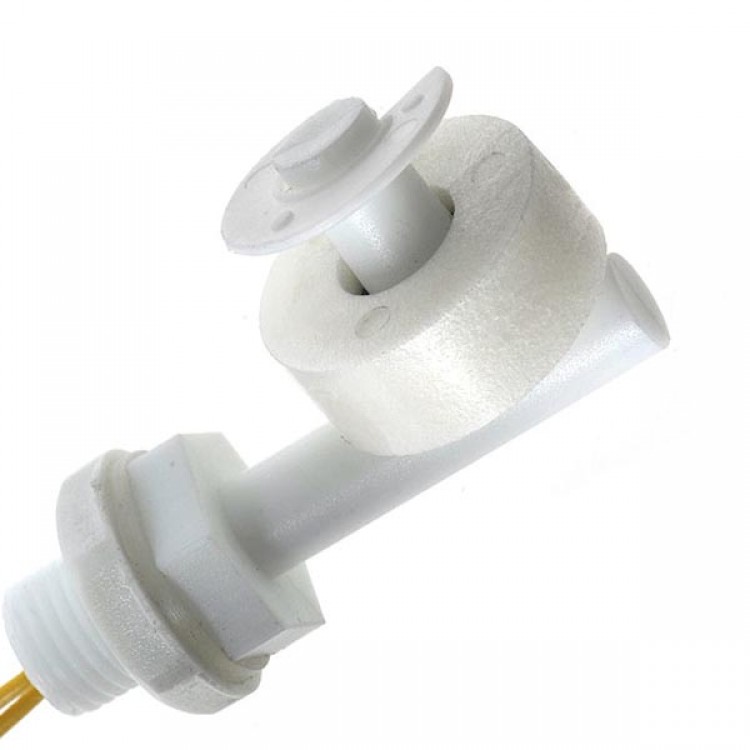

2PC1 Plastic  Electronic Water Level  Float Switch
  • 2PC1 Plastic Electronic Water Level Float Switch

  • SKU:24025
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock
  • Price:$4.99
  • Price in reward points: 50
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $4.89 $4.79 $4.64 $4.44 Contact US

2PC1 Plastic  Electronic Water Level  Float Switch
- Material: PP
- Size:W55xH43xD26mm
- Contact Form:Normally Open
  Electronic Water Float Switch
- Contact form: A
- Max Contact Rating: 10W/70W
- Max Switch Voltage: 100V/300V
- Max Switch Current: 0.5A/1.0A
- Max Contact Resistance: 100m ohm
- Min Insulation Resistance: 100M ohm
- Electrical Life: 1x107  (5Vdc, 10mA)
Physical Characteristic:
- Min Shock: 30G
- Min Vibration: 30G(10~50Hz)
- Temp. Rating: -10~+60°C
- Heat Shock: -20~+70°C

   Switch Characteristic

      Physical Characteristic

1. Contact form: A (Normally Open)

1. Min Shock: 30G

2. Max Contact Rating: 10W/70W

2. Min Vibration: 30G(10~50Hz)

3. Max Switch Voltage: 100V/300V

3. Temp. Rating: -10~+60°C

4. Max Switch Current: 0.5A/1.0A

4. Heat Shock: -20~+70°C

5. Max Contact Resistance: 100m ohm


6. Min Insulation Resistance: 100M ohm


7. Electrical Life: 1x107  (5Vdc, 10mA)
