Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $7.63 | $7.48 | $7.24 | $6.93 | Contact US |

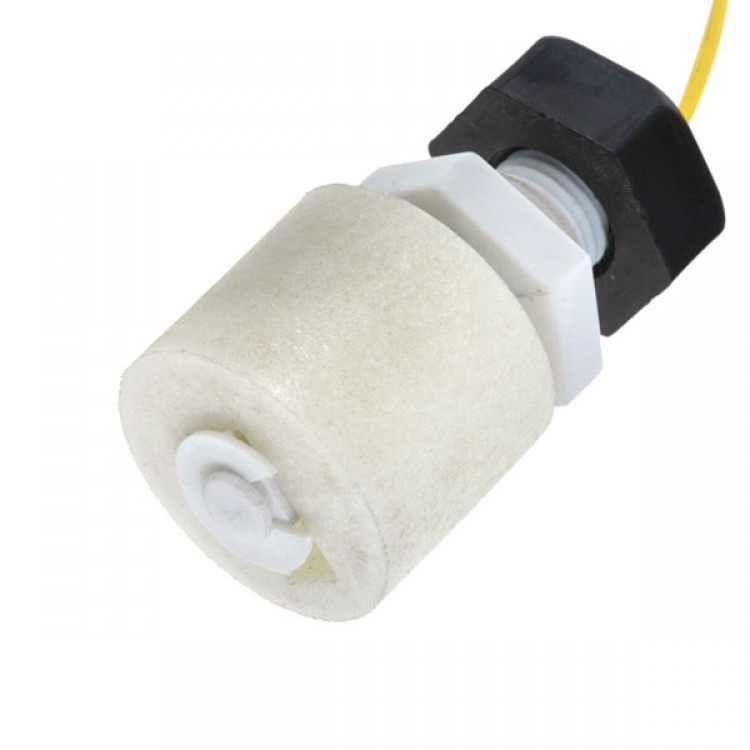

2PC2 Plastic Electronic Water Level Float Switch
Features:
- Material: PP
- Contact Form:Normally Open
Electronic Water Float Switch
Specfications:
- Contact form: A
- Max Contact Rating: 10W/70W
- Max Switch Voltage: 100V/300V
- Max Switch Current: 0.5A/1.0A
- Max Contact Resistance: 100m ohm
- Min Insulation Resistance: 100M ohm
- Electrical Life: 1x107 (5Vdc, 10mA)
Physical Characteristic:
- Min Shock: 30G
- Min Vibration: 30G(10~50Hz)
- Temp. Rating: -10~+60°C
- Heat Shock: -20~+70°C
Switch Characteristic | Physical Characteristic |
1. Contact form: A (Normally Open) | 1. Min Shock: 30G |
2. Max Contact Rating: 10W/70W | 2. Min Vibration: 30G(10~50Hz) |
3. Max Switch Voltage: 100V/300V | 3. Temp. Rating: -10~+60°C |
4. Max Switch Current: 0.5A/1.0A | 4. Heat Shock: -20~+70°C |
5. Max Contact Resistance: 100m ohm |
|
6. Min Insulation Resistance: 100M ohm |
|
7. Electrical Life: 1x107 (5Vdc, 10mA) |
|
