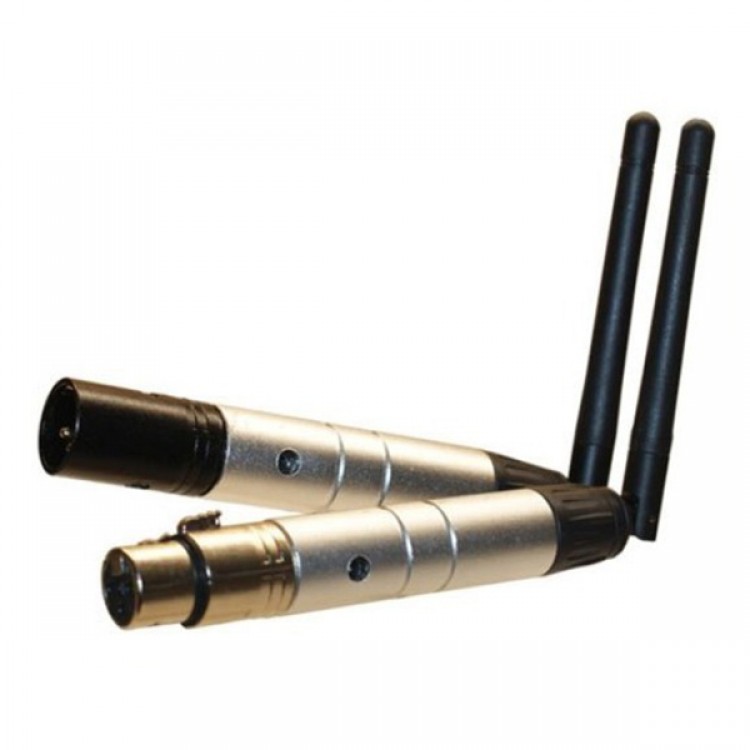

2pcs 2.4G DMX512 DMX Dfi DJ Wireless Receiver & Transmitter for Lighting Control
- DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data by wireless way, which solve lighting control issues of wireless transmitting completely between lighting controller and lighting, lighting and lighting and so on. It gets rid of relying on connecting cables completely.And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliable. This product adopts global free 2.4GHz ISM frequency band. High effective GFSK modulation, communication design is 126 channels jumping frequency, high anti-jamming ability.
- Tricolor LED displaying
- 126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.
- 7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.
- Input voltage: 5VDC 500mA MIN
- Communication distance: 700M
- Work frequency section: 2.4GHz ISM band, 126 channels frequency section.
- Max transmitting power rate: 20dBm
- Receiver sensitive: -94dBm
- Signal port: 3 pin male plug (for transmitter) & female plug (for receiver)
ID code and LED color corresponding correlation:
3: RED+GREED = YELLOW
5: RED+BLUE = PURPLE
6: GREEN+BLUE = CYAN
7: RED+GREED+BLUE = WHITE
Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.
- LED constant lit up: no DMX or wireless signal
- Red LED flash: transmitting
- Green LED flash: Receiving
- RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically.
- ID Code------1-7 groups ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver
Stage lighting, Disco hall, Large literature performance, Gymnasium lighting,
Temporary stage performance, City lighting system, TV station, Conference center,
Professional showplace, Theme parks, Bar lighting and so on.
- 1 * DMX Transmitter ( male plug)
- 1 * DMX Receiver (female plug)
- 2 x Power supply (defult EU plug)
