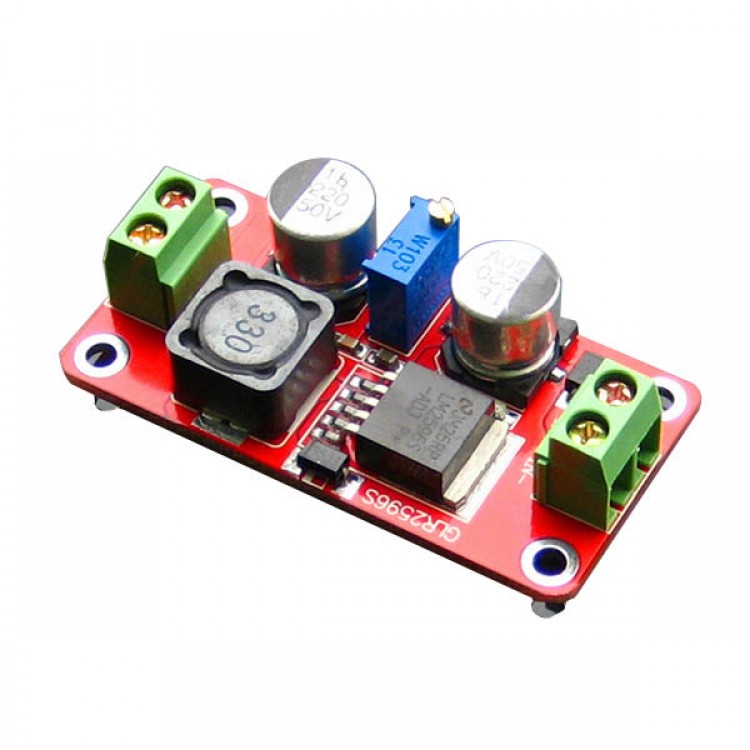

2PCS DC - DC2596 Power Module Voltage Step-down Two-Way Adjustable Power Supply Module Terminals
Specification:
- Dimension: 50*25*13mm(Potentiometer included, L* W * H)
- Input interface: IN+ input positive, Input IN- : input negative
- Output interface: OUT+: input positive OUT-: output negative
Parameters:
- Module type: non-isolated depressure module,LM2596
- Input voltage: 4.5--36V
- Output voltage: 1.25--32V continuous adjustable
- Output current: rated current 0-2A, limitation:3A(if output power is bigger than15W, cooling fin is recommended)
- Transfer efficiency: Maximum 95%
- Switch frequency: 150KHz开关频率：150KHz
- Lowest dropout voltage: 2V
- Workong temperature: industrial(-40~85 degree)(Output power: within 10W)
- The temperature rise of the ful: l40℃
- Output ripple: smaller than 200mV
- Load regulation: ±0.5%
- Voltage adjustment rate: ±0.5%
- Dynamic response speed: 5% 200uS
- Short circuit protection: self recover
- Reverse polarity protection: 36V anti-reverse transpositon protection, module won't be damaged even power supply is connected in reverse
- Connection mode: sealing, can connect directly to PCB after pin is added
