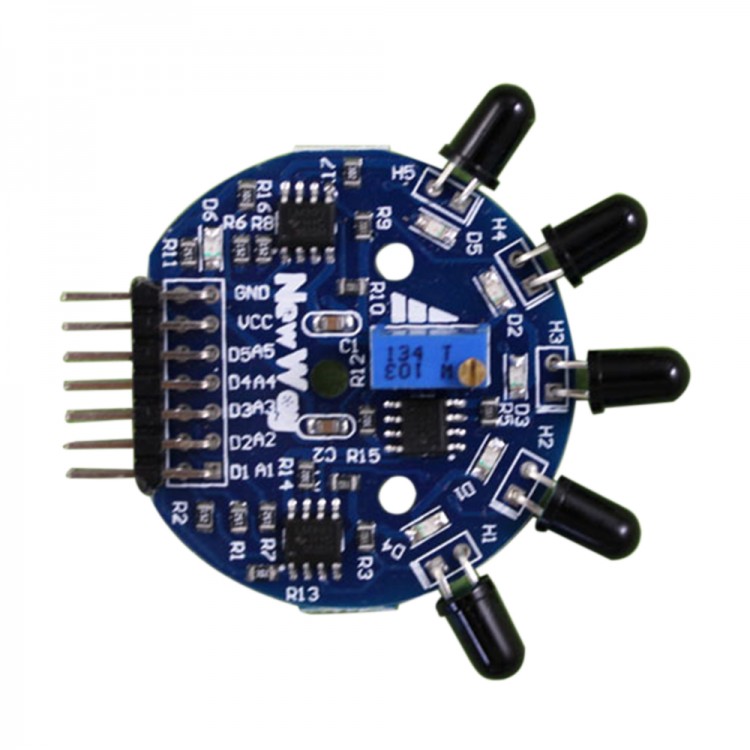

3.3V-9V 5 Channel Flame Sensor Module Analog Digital Dual Output for Robot DIY Fire Alarm

3.3V-9V 5 Channel Flame Sensor Module Analog Digital Dual Output for Robot DIY Fire Alarm

Description:
- Flame sensor design using the detection range (normal detection range of a single flame sensor probably about 30 °, as the distance increases, the range decreases, the detection range of the product is greater than 120 °)
- Able to output a digital signal (high and low), easy to use
- Can output the analog signal (voltage signal), the signal can be accurately measured, for high precision applications
- All five outputs with status indicators, so whether in debug or in practical use has brought great convenience
- Adjustable detection range digital output, analog output sensitivity adjustable design flexibility
- Using 1% resistor design (flame sensor available in the market are designed with a resistance of 5%), the signal output is more accurate for high-precision measurements of the occasion demands
- Onboard 3 M3 mounting holes for easy installation
- 3.3V-9V power supply, compatible with most of the SCM system
- SMT chip devices all use automatic welding technology, military quality trustworthy

How it works:
This product is capable of detecting flames emitted wavelength range of 700-1100 nm, respectively near infrared short wave (SW-NIR), by means of an electrical signal (voltage signal) is output.


Applications:
All flame detection needs of the occasion

Data: Click here http://pan.baidu.com/netdisk/singlepublic?fid=223843_2470058456

Use Case:
- Fighting robot
- Fire alarm

Package Inlcuded:
- 1 x 5 Channel  Flame Sensor Module
