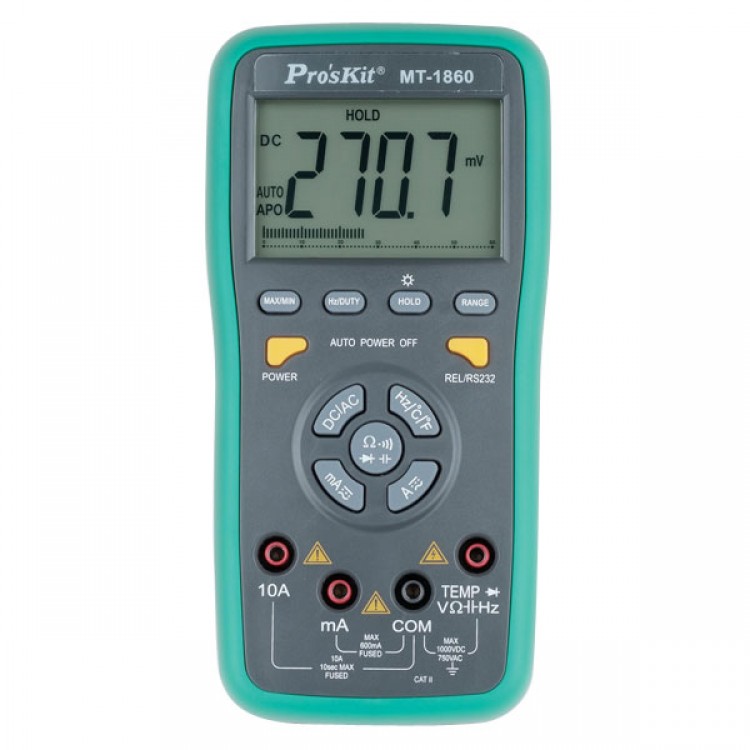

3-5/6 Dual Display DMM w/ USB Connector with Key Touching Automatic Range Multi-function Digital Multimeter MT-1860
  • 3-5/6 Dual Display DMM w/ USB Connector with Key Touching Automatic Range Multi-function Digital Multimeter MT-1860

  • SKU:23635
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 7
  • Price:$68.48
  • Price in reward points: 685
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $67.11 $65.74 $63.69 $60.95 Contact US

3-5/6 Dual Display DMM w/ USB Connector with Key Touching Automatic Range Multi-function Digital Multimeter
Features:

The Professional Multimeter comes with USB connector to allow you easy connection to PC for monitor measuring data and recording
- It endowed with the key touching function with the LCD display
- It features easy operation, stable performance and high reliability.
- The complete machine offering high resolution and precision.
- It is ideal tool for laboratory and factory as well as for radio fans and family
- With Mini USB interface allows user to connect to PC easily.
- 3 5/6 digits 5999 counts.
- 0.5% best accuracy.
- Auto range.
- USB connector to computer
- Dual display with analog bargraph.
- Key touching

- Has the USB connector and computer online, automatic shift, metal anti-interference mask, automatic shutdown, data keep bees, short circuit, the relative value of measurement, frequency/space ratio measurement, the biggest/minimum value measurement, battery low voltage instructions, double color shockproof shell... Etc. Function.It can test the dc voltage, ac voltage, current, alternating current to direct current, resistor, capacitor, frequency, temperature (°C / °F), diodes, transistors.Liquid crystal display: the 70 x 50 mm large LCD, which has 61 period of analogy simulation scale, unit symbols show, 3-5/6 digits, the biggest read value 5999.Input impedance: 10 M ΩSampling rate: three times/SEC.Communication frequency response: 40 to 400 Hz.
Specifications:

Max Read Value
5999
Digits Count
3 5/6
LCD Size
68×47mm, height:33mm
LCD Backlight
Y
simulation graduation display
61 section
Aoto/manual opration mesure range
Auto(AV/DV and Resistance/Capacitor Recognization)
DV
600mV/6V/60V/600V ±(0.5%+4d)

1000V ±(1.0%+4d)
AV
6/60/600V ±(0.8%+10d)

750V ±(1.0%+6d)
DV(A)
60/600mA ±(1.0%+10d)

6A/10A ±(1.2%+10d)
AV(A)
60/600mA ±(1.5%+10d)

6A/10A ±(2.5%+15d)
Resiatance(Ω)
600Ω ±(0.8%+5d)

6/60/600K/6MΩ ±(0.8%+4d)

60MΩ ±(1.2%+10d)
Frequency(Hz)
10/100/1000Hz ±(0.3%+2d)

10K/100KHz ±(0.3%+2d)

1M/20MHz ±(0.3%+2d)
Capacitor(μF)
40nF±(5%+30d)

400nF/4μF/40μF±(3.5%+8d)

200μF±(5.0%+10d)
Temperature(C)
(-20C~400C) ±1.0+5d

(400C~1000C) ±1.5+15d
Temperature(F)
±(1.0+5d)<750F

±(1.5+5d)≧750F
Cutting out Beep
Y
Diode Test
Y
Transistor Test
N
Data Retain
Y
Max/Min Meauring Range
Max/Min
Ralative Value Measure
Y
Duty Cycle Ratio Measure
0.1%~99.9%
PC Connection
USB Port
Automatic Power-off
Y
Low Power Indication
Y
Input Indication
Y
EN61010-1 CAT II /CAT III
1000VDC/750VAC
Battery
1.5V AAA×2个
Size(D×W×H)mm
185×91×49
Weight(g)
410g
Package
Color Box
