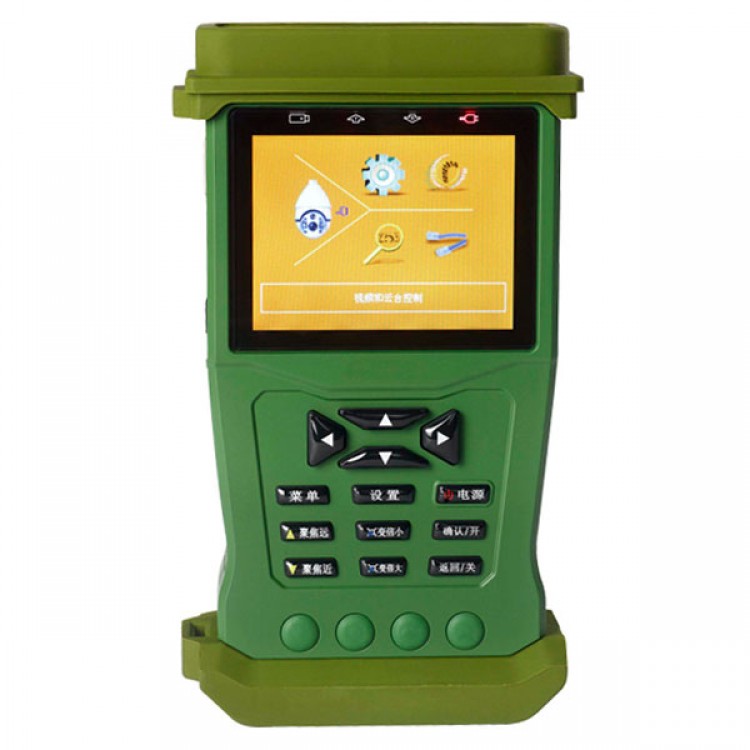

• 3.5" Handhold PTZ CCTV Camera TESTER AU AV MONITOR 12V OUTPUT w/Netcable TESTER

3.5" Handhold PTZ CCTV Camera TESTER AU AV MONITOR 12V OUTPUT w/Netcable TESTER

Availability: In stock, usually dispatched in 1 business day

  • Price:$108.97
  • Price in reward points: 1090 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $106.79 $104.61 $101.34 $96.98 Contact US
Quantity:

3.5" Handhold PTZ CCTV Camera TESTER AU AV MONITOR 12V OUTPUT w/Netcable TESTER

Description:

- Audio Test;
- Video Test;
- PTZ Controller;
- DC12V 1A power output for camera;
- 485 address search function;
- RS485 Data Test;
- UTP Cable Test;
- Battery capacity display level on screen function;
- High performance battery, longer working time;
- OSD menu, easily control;
- Support more than 10 kinds of RS485 Protocol.

This item doen't supports Digital Multimeter function

Model Multifunctional CCTV Tester GA-K635P
Signal Mode NTSC/PAL automatically suitable
Display 3.5 inch LTPS LCD screen, 960x240 resolution
Video Input/Output 1 Channel BNC
Communication RS485
Protocol PELCO P/D and so on, special protocol customized
Baud Rate 1200, 2400, 4800, 9600, 19200bps
Power Output DC12V, supply power to camera
UTP Cable Test Test UTP Cable connection state and display on the screen.
RS485 Data Test Test the RS485 data sent from control device.
Power Supply DC9V/2A
Battery 1400mAH
AC/DC Voltage 0~300V
AC/DC Current 400.0uA, 4000uA, 40.00mA, 400.0mA, 10A
Resistor 400.0Ω, 4.000K, 40.00K,400.0K, 4.000M, 40.00M
Capacitor 4.000nF~400.0MF
Diode 0~2V forward voltage, min. resolution: 1mV
Switch/off Test <50Ω  sound alert
Test Speed 3 seconds per once
Work Temperature -30°C~+70°C
Work Humidity 30%~90%
Dimension 105*44*188 mm
