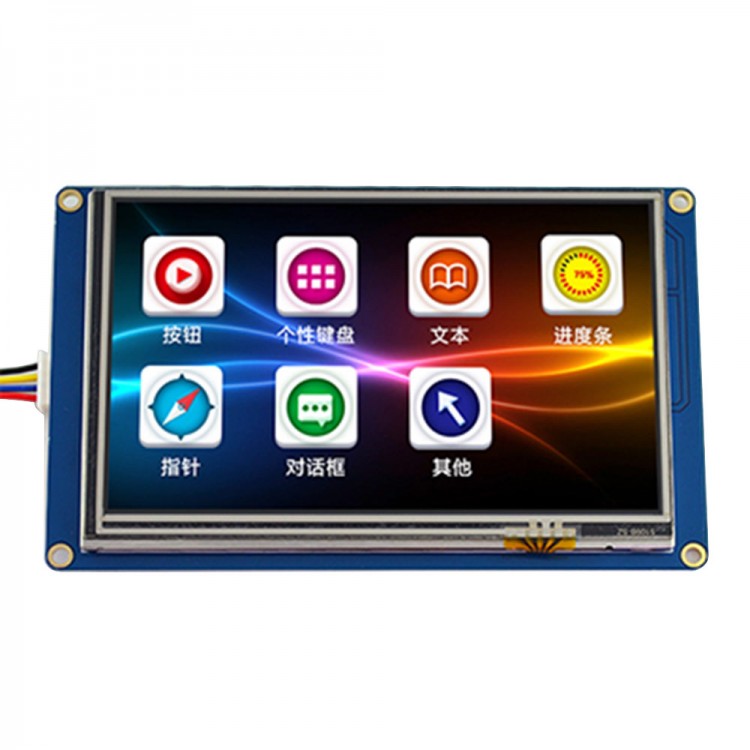

3.5'' HMI Intelligent USART Serial TFT LCD 800x480 TFT Extension IO EEPROM for Arduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$25.09
  • Price in reward points: 251 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.59 $24.09 $23.33 $22.33 Contact US
Quantity:

3.5'' HMI Intelligent USART Serial TFT LCD 800x480 TFT Extension IO EEPROM for Arduino

More information: Click here

Specification:
- Enhanced version
- Support EEPROM RTC extends IO
- Model: TJC4832T035_011R
- Touch: Resistive touch
- Resolution:480*320
- 3.5 inch
- Communication interface: USART seriel port interface
- Interface level: 3.3V/ 5V TTL Level
- Operating voltage: 4.75-7V
- Operating temperature: -20~70 deg C
- FLASH: 32MB
- RAM: 8192 BYTE

Features:
- 16-bit true color RGB display
- Support a variety of controls: Button control, progress bar control, text control, cursor control
- With character: Custom WINDOWS character
- Supports basic GUI command (draw point, draw arc, draw rectangular, etc.)
- Support picture formats: BMP, JPG, JPEG, PNG
- 100 backlight dimming
- Sleep mode, sleep current 20mA, wake-up function support touch
- Support serial download and SD card download. Support PC analog debugging, debugging support simulator and device synchronization.

Package List:
- 1 x Module
